Condenser Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. High-mount brake light. See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION )
    2. Rear seat cushion. See REAR SEAT CUSHION REMOVAL/INSTALLATION )
    3. Rear side seat back. See REAR SIDE SEAT BACK REMOVAL/INSTALLATION .
    4. C-pillar trim. See C-PILLAR TRIM REMOVAL/INSTALLATION .
    5. Rear package trim. See REAR PACKAGE TRIM REMOVAL/INSTALLATION .
  3. Remove in the order indicated in the table.

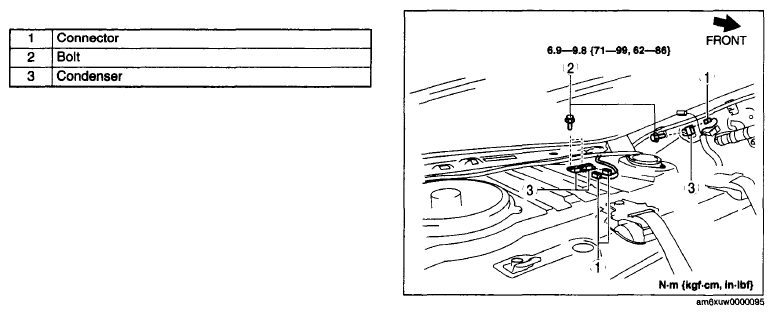

    Fig 1: Identifying Condenser, Connector And Bolt
    G06201157Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
