Resistance Inspection

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the LDWS switch. (See LDWS SWITCH REMOVAL/INSTALLATION .)
Measure the resistance between LDWS switches B and C under the following conditions:
- Resistance with LDWS switch pressed and held
  - 753.89-769.11 ohms
- Resistance with any switches not pressed
  - 1, 139.99-1, 163.01 ohms

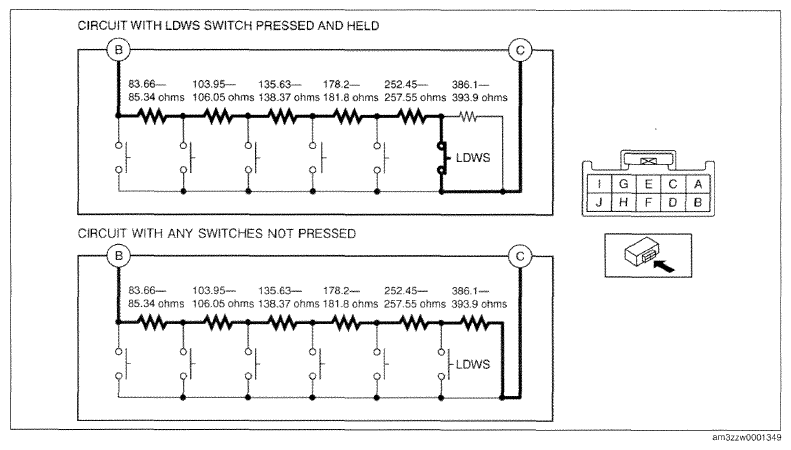

    Fig 1: Measuring Resistance Between LDWS Switches B And C - With LDWS Switch Pressed
    Courtesy of MAZDA MOTORS CORP.
- If not within the specification, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION .)
