Windshield Wiper Motor Disassembly/Assembly: Notes

Disassemble in the order indicated in the figure.

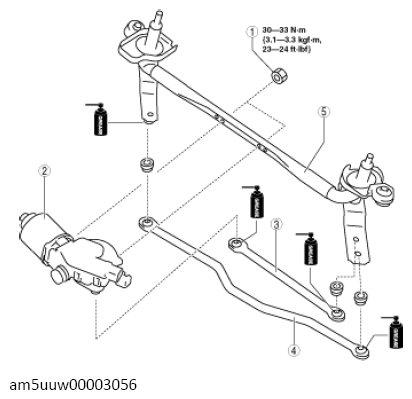

Fig 1: Windshield Wiper Motor Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Nut (See WINDSHIELD WIPER MOTOR ASSEMBLY NOTE .)
2	Windshield wiper motor (See WINDSHIELD WIPER MOTOR ASSEMBLY NOTE .)
3	Wiper link No. 1 (See BALL JOINT ASSEMBLY NOTE .)
4	Wiper link No. 2 (See BALL JOINT ASSEMBLY NOTE .)
5	Main link (See BALL JOINT ASSEMBLY NOTE .)
