Front Fog Light Inspection

  1. Turn the steering wheel to the side where the fog light is to be removed until it locks.
  2. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  3. Remove the front splash shield No. 2. (See SPLASH SHIELD REMOVAL/INSTALLATION .)
  4. Partially peel back the mudguard. (See MUDGUARD REMOVAL/INSTALLATION .)
  5. Remove the front fog light. (See FRONT FOG LIGHT REMOVAL/INSTALLATION .)
  6. Apply battery voltage to front fog light terminal A, and connect terminal B to ground.

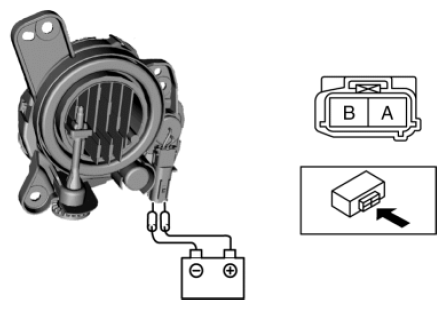

    Fig 1: Applying Battery Voltage To Front Fog Light Terminal A
    G10987949Courtesy of MAZDA MOTORS CORP.
  7. Verify that the front fog light is turned on.
