Transfer Location Index

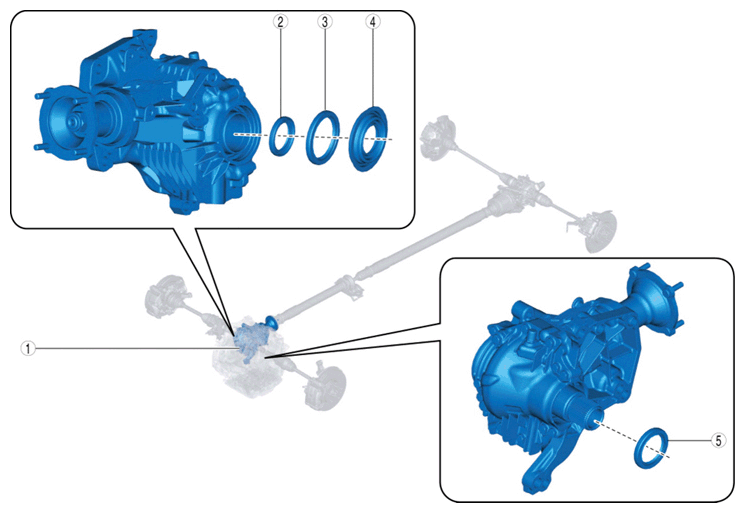

Fig 1: Transfer Case Components Location

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Transfer (See TRANSFER OIL INSPECTION [EW6AX-EL] .) (See TRANSFER OIL REPLACEMENT [EW6AX-EL] .) (See TRANSFER REMOVAL/INSTALLATION [EW6AX-EL] .)
2	Transfer oil seal (RH) No. 3 (See TRANSFER OIL SEAL REPLACEMENT [EW6AX-EL] .)
3	Transfer oil seal (RH) No. 2 (See TRANSFER OIL SEAL REPLACEMENT [EW6AX-EL] .)
4	Transfer oil seal (RH) No. 1 (See TRANSFER OIL SEAL REPLACEMENT [EW6AX-EL] .)
5	Transfer oil seal (LH) (See TRANSFER OIL SEAL REPLACEMENT [EW6AX-EL] .)
