Transfer Location Index

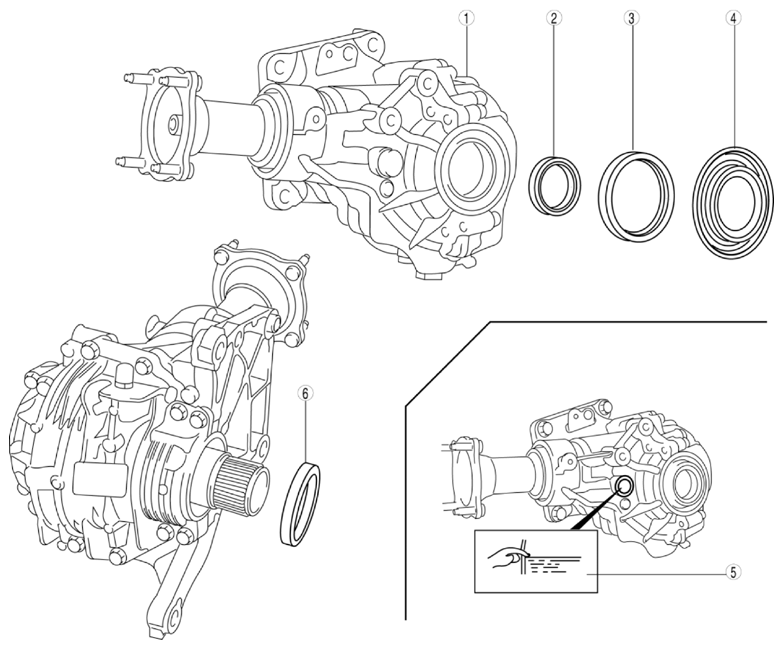

Fig 1: Transfer Case Components

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Transfer (See TRANSFER REMOVAL/INSTALLATION [FW6AX-EL] .)
2	Transfer oil seal (RH) No. 3 (See TRANSFER OIL SEAL REPLACEMENT [FW6AX-EL] .)
3	Transfer oil seal (RH) No. 2 (See TRANSFER OIL SEAL REPLACEMENT [FW6AX-EL] .)
4	Transfer oil seal (RH) No. 1 (See TRANSFER OIL SEAL REPLACEMENT [FW6AX-EL] .)
5	Transfer oil (See TRANSFER OIL INSPECTION [FW6AX-EL] .) (See TRANSFER OIL REPLACEMENT [FW6AX-EL] .)
6	Transfer oil seal (LH) (See TRANSFER OIL SEAL REPLACEMENT [FW6AX-EL] .)
