Net (Seat Back Side)

  1. Switch the ignition OFF (LOCK).
  2. Disconnect the negative battery cable and wait for 1 min or more.(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  3. Remove the following parts:
    1. Seat (See SEAT REMOVAL/INSTALLATION .)
    2. Seat side cover (See SEAT SIDE COVER REMOVAL/INSTALLATION .)
    3. Buckle (See BUCKLE REMOVAL/INSTALLATION )
    4. Seat back component (See SEAT BACK COMPONENT REMOVAL/INSTALLATION .)
    5. Seat back trim (See SEAT BACK TRIM REMOVAL/INSTALLATION .)
  4. Remove the C-rings.
    Fig 1: Identifying Seat Back Frame C-Rings
    G10954211Courtesy of MAZDA MOTORS CORP.
  5. Insert a precision flathead screwdriver in the position shown in the figure.

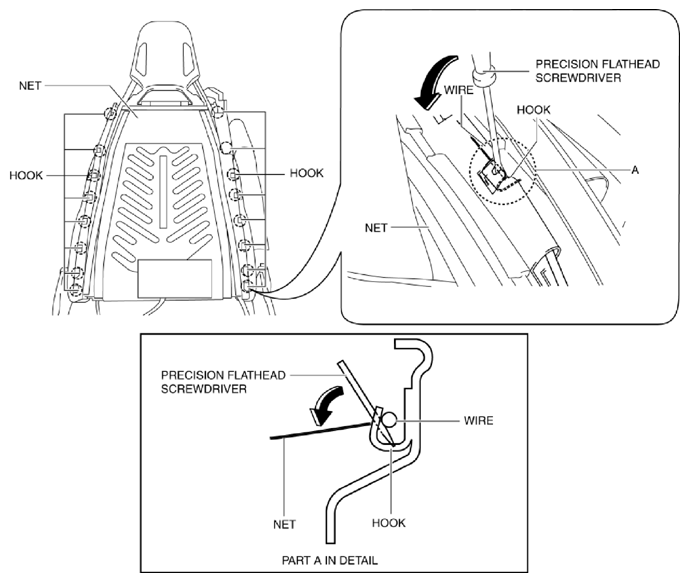

    Fig 2: Detaching Wire From Hook
    G10954212Courtesy of MAZDA MOTORS CORP.
  6. Move the precision flathead screwdriver in the direction of the arrow shown in the figure to detach the wire from the hook.
  7. Detach all of the wires from the hooks and remove the net.
  8. Install in the reverse order of removal. (See NET INSTALLATION NOTE .)
