Headlight Leveling Switch Inspection

1. Disconnect the negative battery cable.
2. Remove the following parts:
   1. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
   2. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
   3. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
   4. Center console box (See CENTER CONSOLE BOX REMOVAL/INSTALLATION .)
   5. Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION .)
   6. Center console (See CENTER CONSOLE REMOVAL/INSTALLATION .)
   7. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
   8. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
   9. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
   10. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
   11. Hood release lever (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
   12. Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)

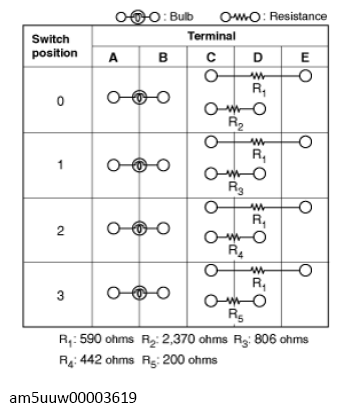

3. Verify that the resistance and continuity between the headlight leveling switch terminals is as indicated in the table.

Courtesy of MAZDA MOTORS CORP.

• If the continuity is not as indicated in the table, or if the resistance is not within the specification, replace the headlight leveling switch.

Courtesy of MAZDA MOTORS CORP.
