Lower Panel Removal/Installation: Driver-side

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    4. Center console box (See CENTER CONSOLE BOX REMOVAL/INSTALLATION .)
    5. Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION .)
    6. Center console (See CENTER CONSOLE REMOVAL/INSTALLATION .)
    7. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    8. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    9. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    10. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
    11. Hood release lever (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)

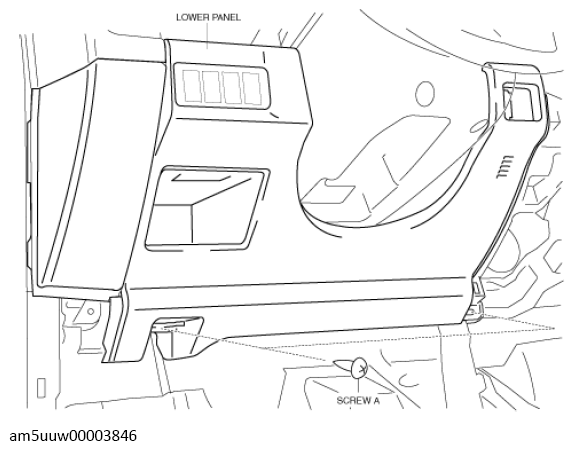

  3. Remove the screws A.
    G13728388Courtesy of MAZDA MOTORS CORP.

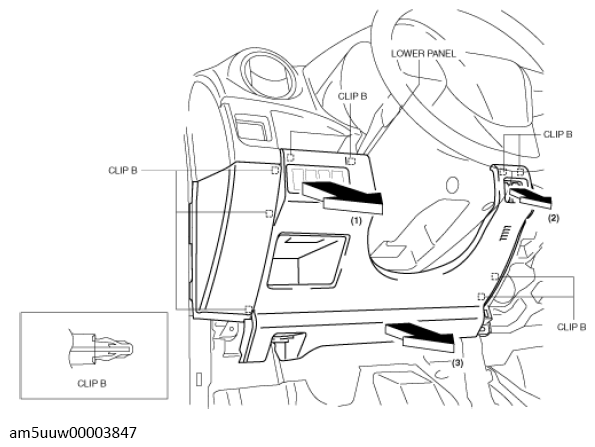

  4. Pull the lower panel in the direction of the arrow in the order of (1), (2), (3) and remove the lower panel while detaching the clips B.
    G13728389Courtesy of MAZDA MOTORS CORP.
  5. Disconnect the switch connector.
  6. Remove the lower panel.
  7. Install in the reverse order of removal.
