Drive Belt Inspection
NOTE:
- Drive belt deflection/tension inspection is not necessary because of the use of the drive belt auto tensioner.

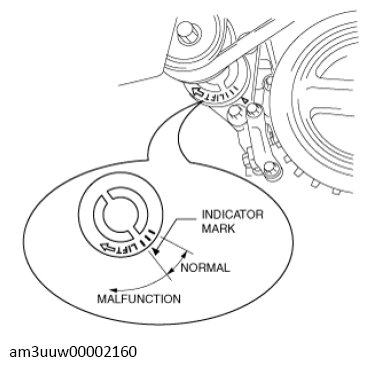

- Verify that the drive belt auto tensioner indicator mark does not exceed the limit.
- If it exceeds the limit, replace the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION .)
