Front Shock Absorber And Coil Spring Disassembly/Assembly: Notes

WARNING:

• Removing/installing the shock absorber and coil spring is dangerous. The shock absorber and coil spring could fly off and cause serious injury or death, and damage the vehicle.

1. Remove the front shock absorber and coil spring. (See FRONT SHOCK ABSORBER AND COIL SPRING REMOVAL/INSTALLATION .)
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
4. After replacing any of the following parts, inspect the wheel alignment and adjust it if necessary. (See FRONT WHEEL ALIGNMENT .)
   • Front shock absorber
   • Coil spring

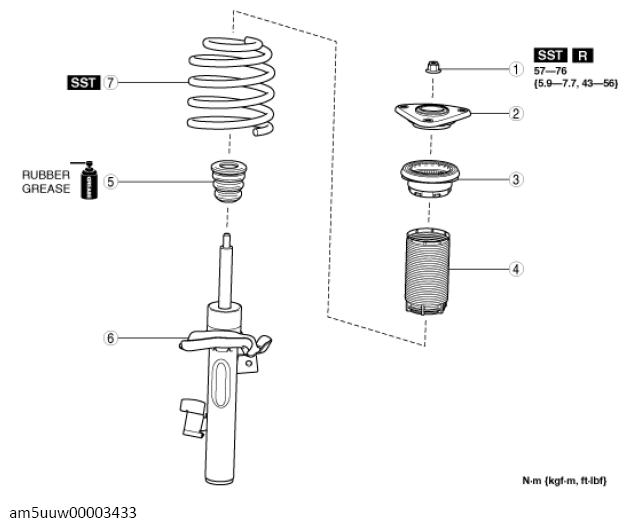

Fig 1: Front Shock Absorber And Coil Spring Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Piston rod nut (See PISTON ROD NUT REMOVAL NOTE .)
2	Mounting rubber
3	Bearing (See BEARING INSTALLATION NOTE .)
4	Dust boot (See DUST BOOT INSTALLATION NOTE .)
5	Bound stopper
6	Front shock absorber
7	Coil spring (See COIL SPRING INSTALLATION NOTE .)
