Cd Player Installation

  1. Connect the connector.

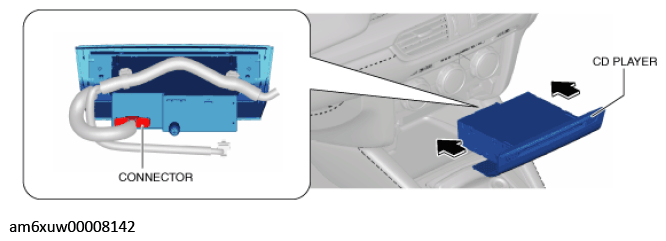

    Fig 1: Installing CD Player
    G11544112Courtesy of MAZDA MOTORS CORP.
  2. Install the CD player.
  3. Install the following parts:
    1. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    2. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    3. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    4. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
    5. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    6. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
  4. Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
