Front Console Removal/Installation

CAUTION:

• Affix protective tape to the position shown in the figure.

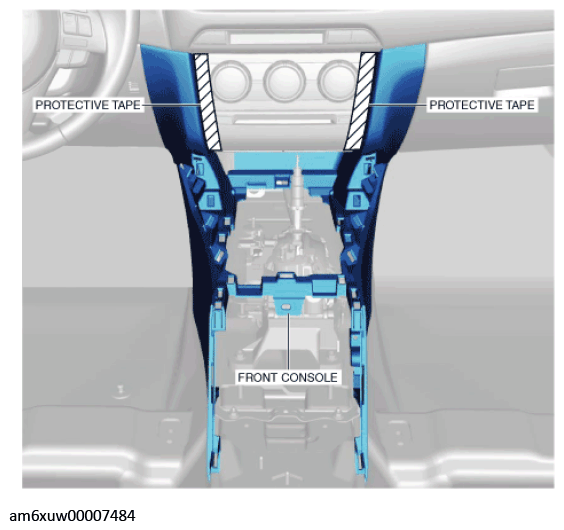

Fig 1: Affixing Protective Tape To Front Console

Courtesy of MAZDA MOTORS CORP.

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
2. Remove the following parts:
   1. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
   2. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
   3. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
   4. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
   5. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
   6. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
   7. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
   8. CD player (See CD PLAYER REMOVAL .) (See CD PLAYER INSTALLATION .)
   9. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
3. Remove fasteners.

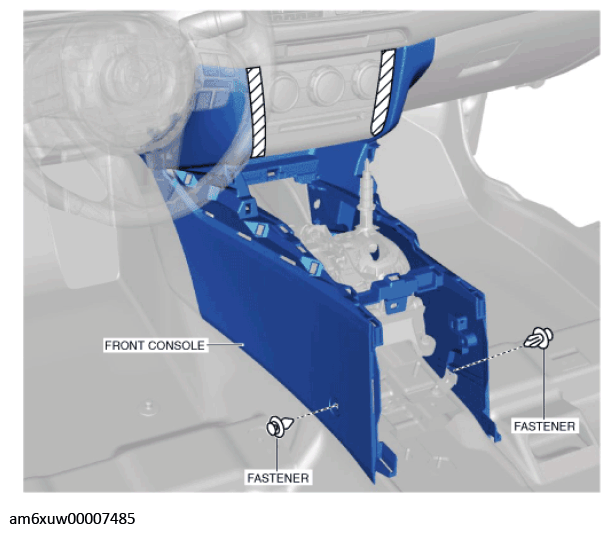

   Fig 2: Removing Front Console Fasteners

   Courtesy of MAZDA MOTORS CORP.
4. Pull the front console in the direction of the arrow in the order of (1), (2) and remove it while detaching clips A, clips B and hooks.

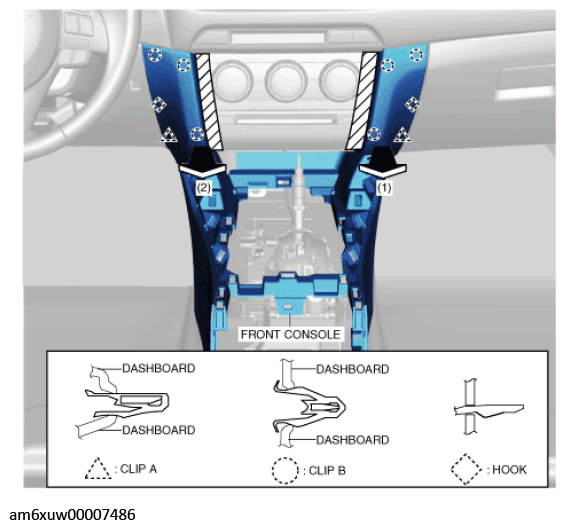

   Fig 3: Detaching Front Console Clips And Hook

   Courtesy of MAZDA MOTORS CORP.
5. Remove the wiring harness clip.
6. Remove the front console in the direction of the arrow shown in the figure.
   Fig 4: Removing Front Console

   Courtesy of MAZDA MOTORS CORP.
7. Install in the reverse order of removal.
