Engine Oil Level Sensor Removal/Installation: Notes

Replacement Part

Engine oil level sensor
Quantity: 1
Location of use: Engine oil level sensor
CAUTION:
  • If the engine oil level sensor is removed, it is necessary to replace it with a new one.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the front under cover No. 2. (See FRONT UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
  3. Drain the engine oil. (See ENGINE OIL REPLACEMENT .)
  4. Remove the seal plate. (See OIL PAN REMOVAL/INSTALLATION .)
  5. Disconnect the engine oil level sensor connector.

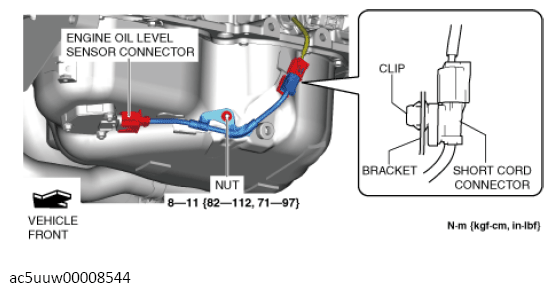

    Fig 1: Engine Oil Level Sensor Connector, Bracket, Short Cord Connector And Nut With Torque Specification
    G13119204Courtesy of MAZDA MOTORS CORP.
  6. Remove the nut.
  7. Remove the clip from the bracket.
  8. Disconnect the short cord connector.
  9. Remove the short cord.
  10. Remove the nuts. (See NUT INSTALLATION NOTE .)

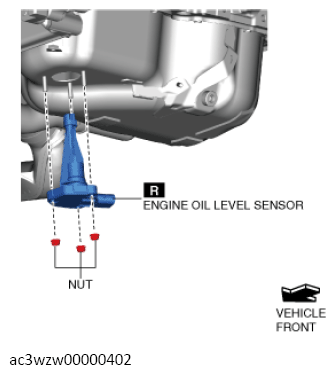

    G13119205Courtesy of MAZDA MOTORS CORP.
  11. Remove the engine oil level sensor.
  12. Install in the reverse order of removal.
  13. Refill with the specified type and amount of the engine oil. (See ENGINE OIL REPLACEMENT .)
  14. Start the engine and confirm that there is no oil leakage.
    • If there is oil leakage, repair or replace the malfunctioning part according to the inspection results.
  15. Inspect the engine oil level. (See ENGINE OIL LEVEL INSPECTION .)
