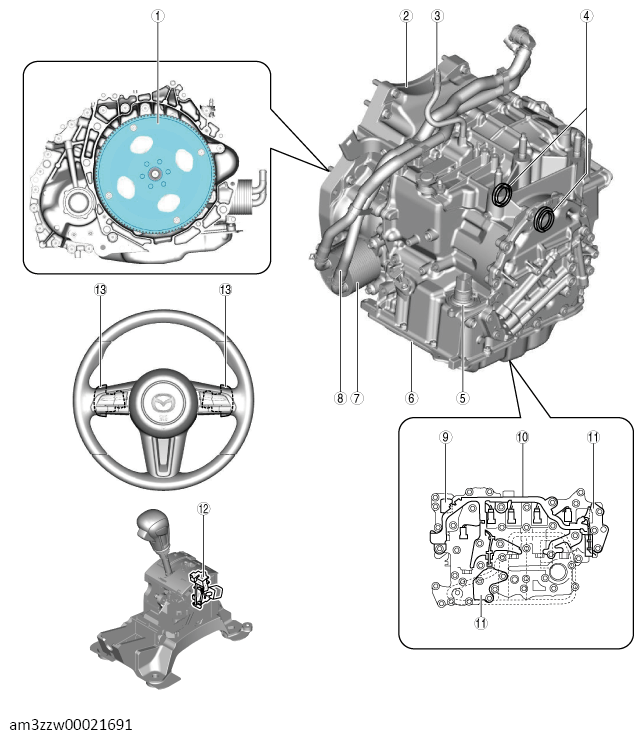

| 1 |
Drive plate
(See DRIVE PLATE REMOVAL/INSTALLATION [ET6A-EL (US)] .) |
| 2 |
Automatic transaxle
(See MECHANICAL SYSTEM TEST [ET6A-EL (US)] .)
(See ROAD TEST [ET6A-EL
(US)] .)
(See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [ET6A-EL (US)] .)
(See AUTOMATIC TRANSAXLE FLUID (ATF) ADJUSTMENT [ET6A-EL
(US)] .)
(See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [ET6A-EL (VINs 7, L, M) (US)] .)
(See INITIAL LEARNING [ET6A-EL
(US)] .)
(See TCM CONFIGURATION [ET6A-EL
] .) |
| 3 |
Breather hose
(See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [ET6A-EL (VINs 7, L, M) (US)] .) |
| 4 |
Oil seal (differential) |
| 5 |
Oil seal (control valve body)
(See OIL SEAL (CONTROL VALVE BODY) REPLACEMENT [ET6A-EL
(US)] .) |
| 6 |
Control valve body
(See CONTROL VALVE BODY REMOVAL/INSTALLATION [ET6A-EL
(US)] .)
(See TCM CONFIGURATION [ET6A-EL
] .) |
| 7 |
Oil cooler
(See OIL COOLER REMOVAL/INSTALLATION [ET6A-EL
(VINs 7, L, M)] .) |
| 8 |
Water hose
(See OIL COOLER REMOVAL/INSTALLATION [ET6A-EL
(VINs 7, L, M)] .) |
| 9 |
On/OFF solenoid
(See ON/OFF SOLENOID REMOVAL/INSTALLATION [ET6A-EL
(US)] .) |
| 10 |
Coupler component
(See COUPLER COMPONENT REMOVAL/INSTALLATION [ET6A-EL
(US)] .) |
| 11 |
Oil pressure switch
(See OIL PRESSURE SWITCH REMOVAL/INSTALLATION [ET6A-EL
(US)] .) |
| 12 |
M position switch/up switch/down switch
(See M POSITION SWITCH INSPECTION [ET6A-EL
] .)
(See M POSITION SWITCH REMOVAL/INSTALLATION [ET6A-EL
] .)
(See UP SWITCH INSPECTION [ET6A-EL
] .)
(See UP SWITCH REMOVAL/INSTALLATION [ET6A-EL
] .)
(See DOWN SWITCH INSPECTION [ET6A-EL
] .)
(See DOWN SWITCH REMOVAL/INSTALLATION [ET6A-EL
] .) |
| 13 |
Steering shift switch
(See STEERING SHIFT SWITCH INSPECTION [ET6A-EL
] .)
(See STEERING SHIFT SWITCH REMOVAL/INSTALLATION [ET6A-EL
] .) |
