Exhaust System Removal/Installation: Notes
WARNING:
- A hot engine and exhaust system can cause severe burns. Turn off the engine and wait until they are cool before removing the exhaust system.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove in the order indicated in the table.
- Remove the insulator. (See EXHAUST SYSTEM INSULATOR REMOVAL/INSTALLATION .)
- Install in the reverse order of removal.

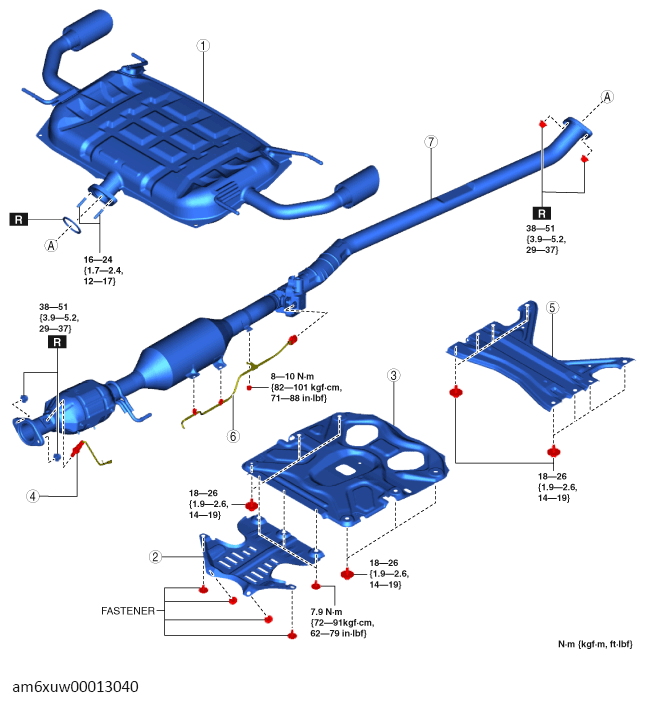

Step 1
PART DESCRIPTION
| 1 | Main silencer |
| 2 | Insulator (See INSULATOR INSTALLATION NOTE .) |
| 3 | Brace bar (See BRACE BAR REMOVAL NOTE .) (See BRACE BAR INSTALLATION NOTE .) |
| 4 | HO2S (See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION .) |
| 5 | Tunnel member (See TUNNEL MEMBER INSTALLATION NOTE .) |
| 6 | Wiring harness |
| 7 | TWC |

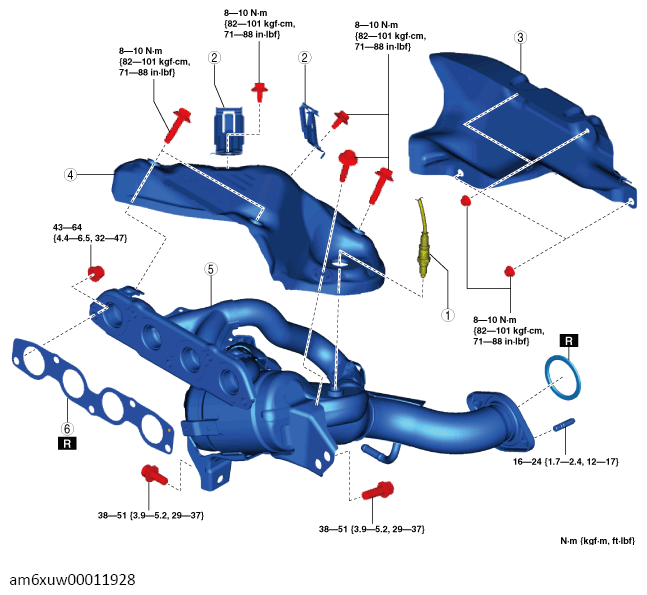

Step 2
PART DESCRIPTION
| 1 | A/F sensor (See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION .) |
| 2 | Clip |
| 3 | Insulator |
| 4 | Exhaust manifold insulator (See EXHAUST MANIFOLD INSULATOR REMOVAL NOTE .) (See EXHAUST MANIFOLD INSULATOR INSTALLATION NOTE .) |
| 5 | Exhaust manifold (WU-TWC) (See EXHAUST MANIFOLD REMOVAL NOTE .) (See EXHAUST MANIFOLD INSTALLATION NOTE .) |
| 6 | Exhaust manifold gasket |
