Foot Support Removal/Installation

  1. Remove the following parts:
    1. Passenger-side side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    2. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    3. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    4. Passenger-side front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION .)
  2. Partially peel back the floor covering.

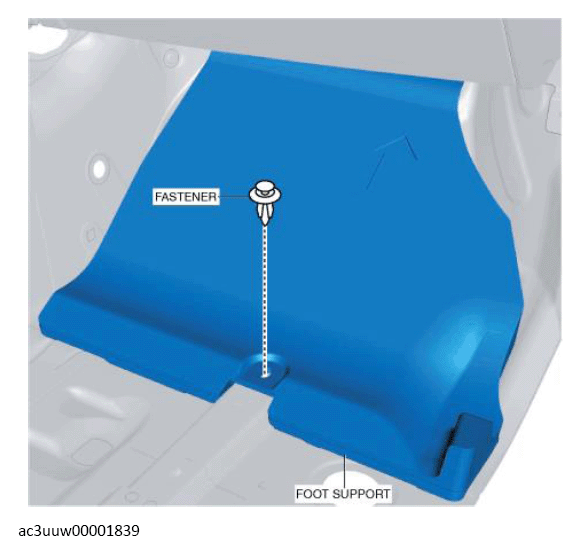

  3. Remove the fastener.
    G13152798Courtesy of MAZDA MOTORS CORP.

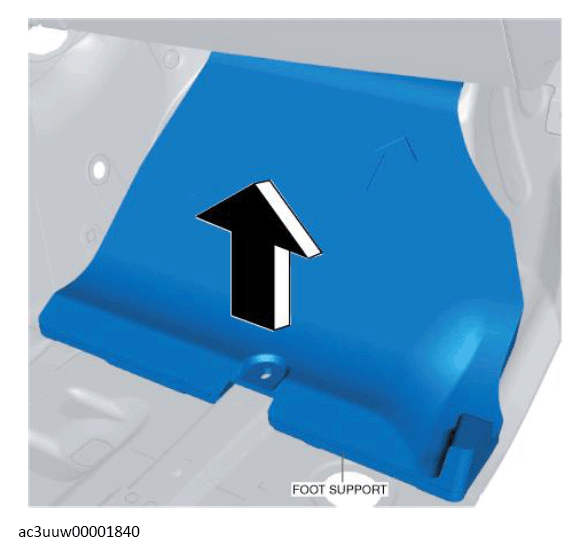

  4. Pull the foot support in the direction of the arrow and remove it.
    G13152799Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
