Magnetic Clutch Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the figure.

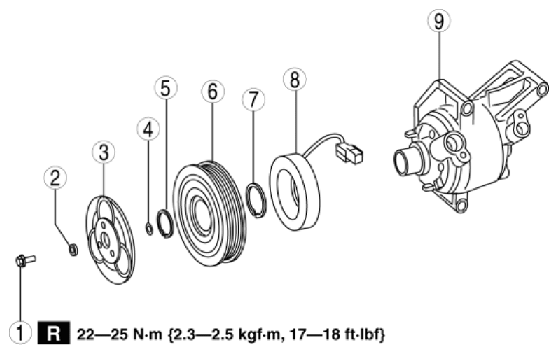

Fig 1: Identifying Magnetic Clutch Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Bolt (See Bolt removal/installation note .)
2	Washer
3	Pressure plate
4	Shim
5	Snap ring (See Snap ring removal/installation note .)
6	A/C compressor pulley (See A/C Compressor Pulley Removal Note .) (See A/C Compressor Pulley Installation Note .)
7	Snap ring (See Snap ring removal/installation note .)
8	Stator
9	A/C compressor body

Assemble in the reverse order of disassembly.
Adjust the magnetic clutch clearance. (See MAGNETIC CLUTCH ADJUSTMENT .)
