Magnetic Clutch Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the table.

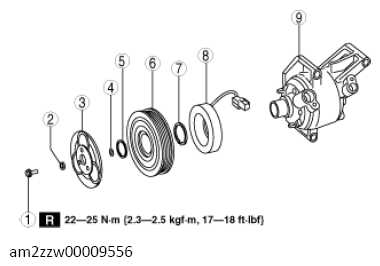

    Fig 1: Exploded View Of Magnetic Clutch With Torque Specification
    G13150972Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Bolt
    (See Bolt removal/installation note .)
    2 Washer
    3 Pressure plate
    4 Shim
    5 Snap ring
    (See Snap ring removal/installation note .)
    6 A/C compressor pulley
    (See A/C Compressor Pulley Removal Note .)
    (See A/C Compressor Pulley Installation Note .)
    7 Snap ring
    (See Snap ring removal/installation note .)
    8 Stator
    9 A/C compressor body
  2. Assemble in the reverse order of disassembly.
  3. Adjust the magnetic clutch clearance. (See MAGNETIC CLUTCH ADJUSTMENT .)
