Lower Panel Removal/Installation: Driver-side

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
2. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
3. Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
4. Hood release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION .)
5. Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)

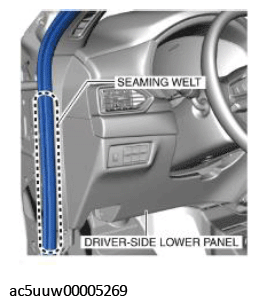

Partially peel back the seaming welt.

Courtesy of MAZDA MOTORS CORP.

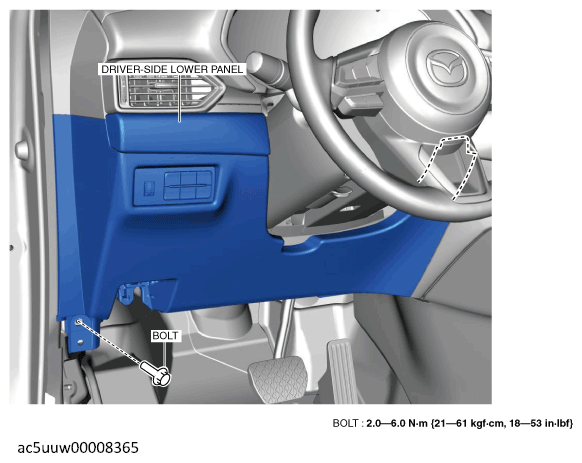

Remove the bolt.

Fig 1: Driver-Side Lower Panel Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.

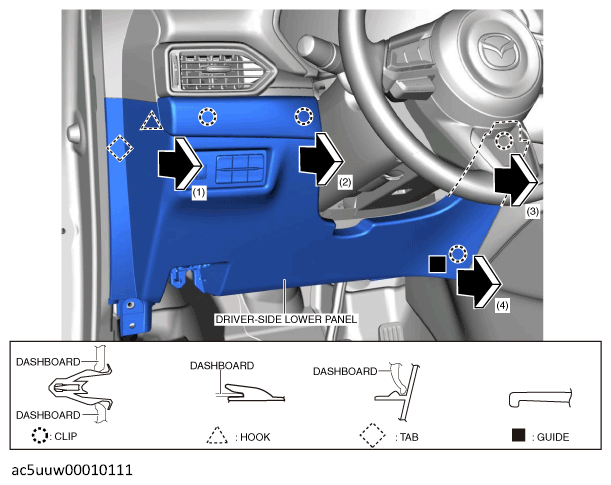

Pull the driver-side lower panel in the order of arrows (1), (2), (3), and (4) shown in the figure, and remove it while detaching the clips, hook, tab, and guide.

Courtesy of MAZDA MOTORS CORP.

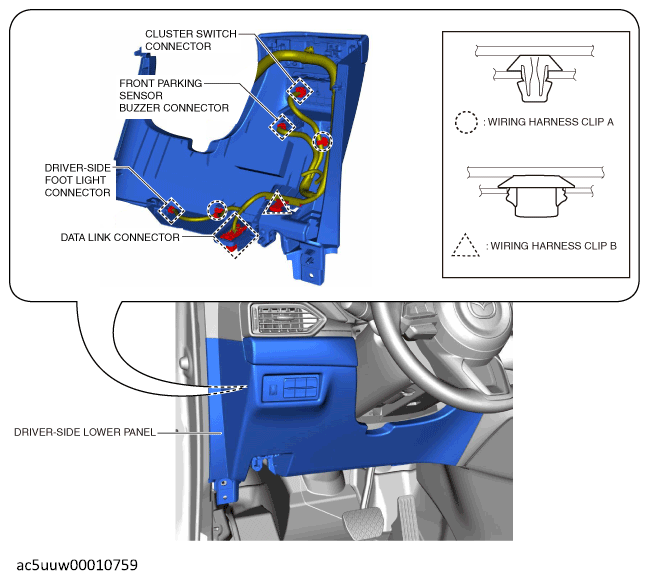

Disconnect the cluster switch connector.

Courtesy of MAZDA MOTORS CORP.
Remove the data link connector.
Disconnect the front parking sensor buzzer connector. (with front parking sensor)
Disconnect the driver-side foot light connector. (with driver-side foot light)
Remove wiring harness clips A and B.
NOTE:
- When replacing the driver-side lower panel, remove the following parts:
- Cluster switch (See CLUSTER SWITCH REMOVAL/INSTALLATION .)
- Driver-side foot light (with foot light) (See FOOT LIGHT REMOVAL/INSTALLATION .)
- Front parking sensor buzzer (with parking sensor system) (See FRONT PARKING SENSOR BUZZER REMOVAL/INSTALLATION .)
Install in the reverse order of removal.
