Passenger Compartment Temperature Sensor Removal/Installation (Auto A/C)

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    4. Hood release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION .)
    5. Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)
    6. Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

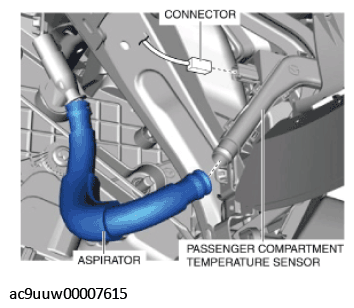

    Fig 1: Removing Connector From Passenger Compartment Temperature Sensor
    G11431894Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the aspirator from the passenger compartment temperature sensor.
  5. Remove the screw.

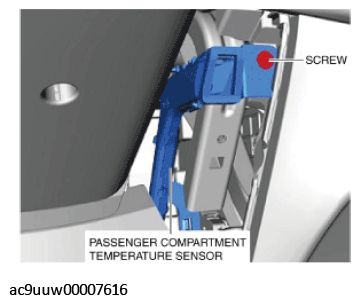

    Fig 2: Passenger Compartment Temperature Sensor And Screw
    G11431895Courtesy of MAZDA MOTORS CORP.
  6. Remove the passenger compartment temperature sensor.

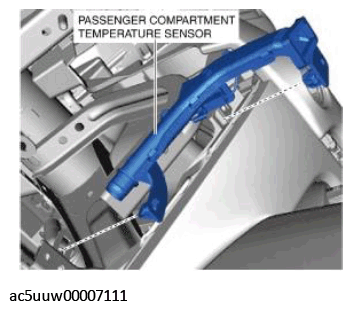

    Fig 3: Removing Passenger Compartment Temperature Sensor
    G11431896Courtesy of MAZDA MOTORS CORP.
  7. Remove the aspirator.

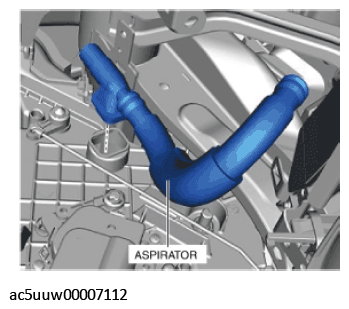

    Fig 4: Removing Aspirator
    G11431897Courtesy of MAZDA MOTORS CORP.
  8. Install in the reverse order of removal.
