Trunk Board Removal/Installation
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)

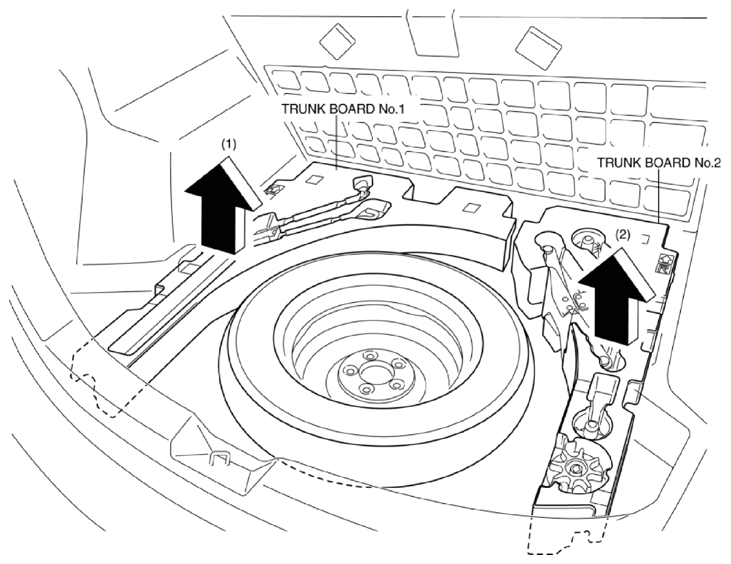

- Remove the trunk board No. 1 in the direction of the arrow (1) shown in the figure.
- Remove the trunk board No. 2 in the direction of the arrow (2) shown in the figure.
- Install in the reverse order of removal.
