HVAC Basic System Location Index
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT DESCRIPTION

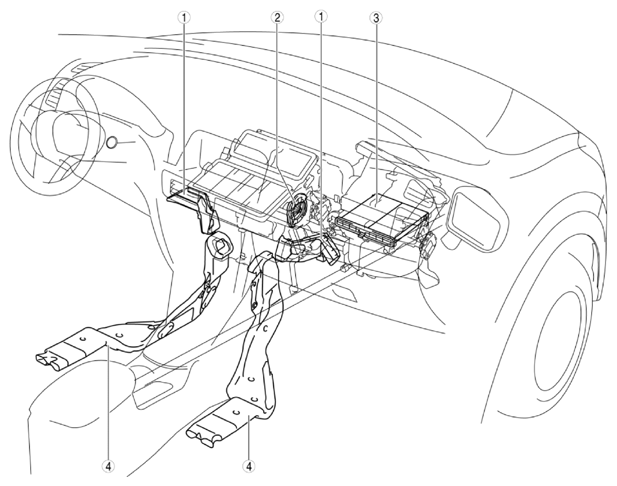

| 1 | Front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION .) |
| 2 | Airflow mode main link (See AIRFLOW MODE MAIN LINK REMOVAL/INSTALLATION .) |
| 3 | Air filter (See AIR FILTER REMOVAL/INSTALLATION .) (See AIR FILTER INSPECTION .) |
| 4 | Rear heat duct (See REAR HEAT DUCT REMOVAL/INSTALLATION .) |

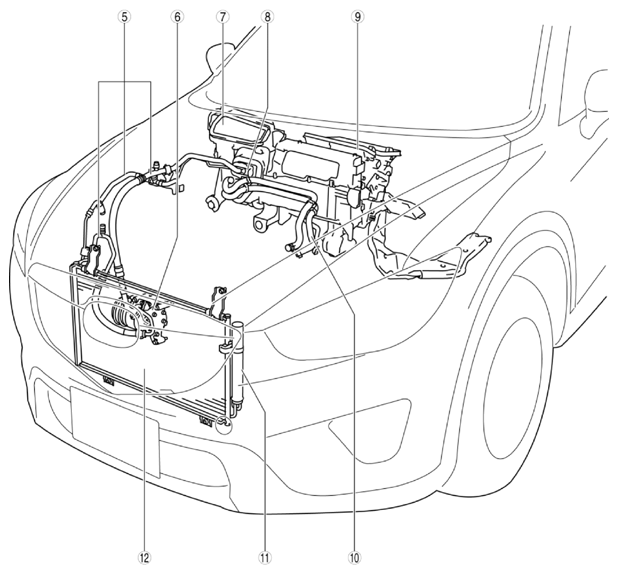

| 5 | Refrigerant line (See REFRIGERANT LINE REMOVAL/INSTALLATION .) |
| 6 | A/C compressor (See A/C COMPRESSOR REMOVAL/INSTALLATION .) |
| 7 | A/C unit (See A/C UNIT REMOVAL/INSTALLATION .) (See A/C UNIT DISASSEMBLY/ASSEMBLY .) (See EXPANSION VALVE REMOVAL/INSTALLATION .) (See EVAPORATOR INSPECTION .) (See HEATER CORE INSPECTION .) |
| 8 | Expansion valve (See EXPANSION VALVE REMOVAL/INSTALLATION .) |
| 9 | Blower unit (See BLOWER UNIT REMOVAL/INSTALLATION .) (See BLOWER UNIT DISASSEMBLY/ASSEMBLY .) |
| 10 | Heater hose (See HEATER HOSE REMOVAL/INSTALLATION .) |
| 11 | Receiver/drier (See RECEIVER/DRIER REMOVAL/INSTALLATION .) |
| 12 | Condenser (See CONDENSER REMOVAL/INSTALLATION .) (See CONDENSER INSPECTION .) |
