Foot Support Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    4. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    5. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    6. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
    7. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    8. Rear console panel (See REAR CONSOLE PANEL REMOVAL/INSTALLATION .)
    9. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
  3. Partially peel back the floor covering.
  4. Remove the fastener.

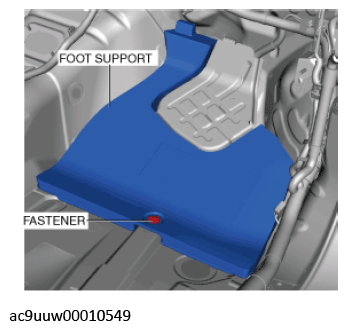

    With 360° view monitor control module

    G12266374Courtesy of MAZDA MOTORS CORP.

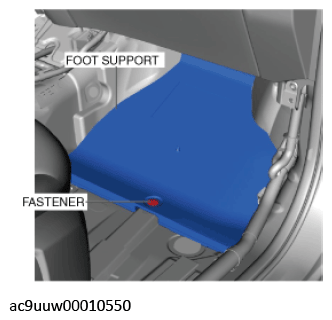

    Without 360° view monitor control module

    G12266375Courtesy of MAZDA MOTORS CORP.
  5. Pull the foot support in the direction of the arrow and remove it.

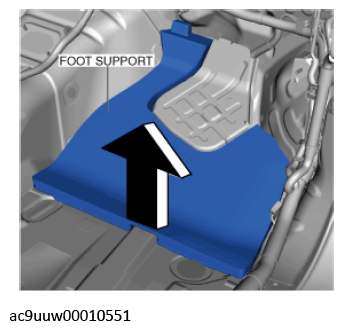

    With 360° view monitor control module

    G12266376Courtesy of MAZDA MOTORS CORP.

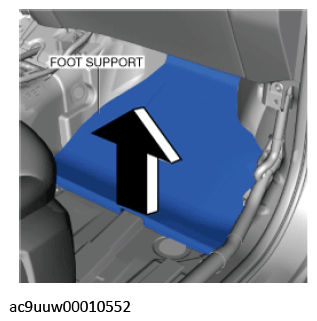

    Without 360° view monitor control module

    G12266377Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
