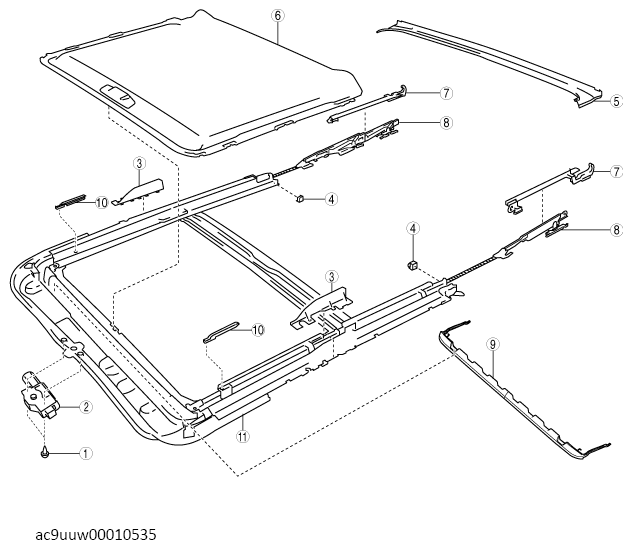

Sunroof Unit Disassembly/Assembly: Notes

Disassemble in the order indicated in the table.

Courtesy of MAZDA MOTORS CORP.

PARTS DESCRIPTION

1	Screw
2	Sunroof motor
3	Screen
4	Rear stopper
5	Drip rail
6	Sunshade (See Sunshade Disassembly Note .)
7	Front guide (See Front Guide Disassembly Note .)
8	Decoration link
9	Deflector
10	Set plate
11	Sunroof frame
