Rear Console Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in the table.

    Without Electric Parking Brake

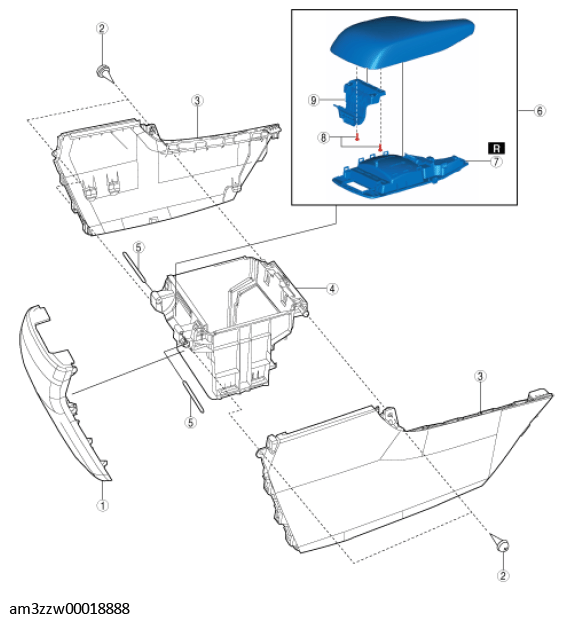

    Fig 1: Disassembling/Assembling Rear Console Parts (Without Electric Parking Brake)
    G11449323Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Console panel
    2 Screw
    3 Side panel
    (See Side Panel Removal Note .)
    4 Rear console box
    5 Pin
    (See CONSOLE LID REMOVAL/INSTALLATION .)
    6 Rear console lid
    (See CONSOLE LID REMOVAL/INSTALLATION .)
    7 Damper
    8 Console lid inner
    (See CONSOLE LID REMOVAL/INSTALLATION .)
    9 Screw
    10 Console lid hinge

    With Electric Parking Brake

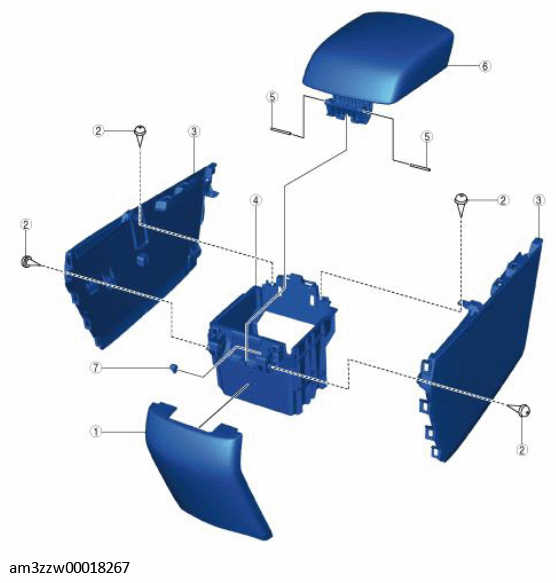

    Fig 2: Disassembling/Assembling Rear Console Parts (With Electric Parking Brake)
    G11449324Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Console panel
    2 Screw
    3 Side panel
    (See Side Panel Removal Note .)
    4 Rear console box
    5 Pin
    (See CONSOLE LID REMOVAL/INSTALLATION .)
    6 Rear console lid
    (See CONSOLE LID REMOVAL/INSTALLATION .)
    7 Damper
  2. Assemble in the reverse order of disassembly.
