Entertainment Location Index

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

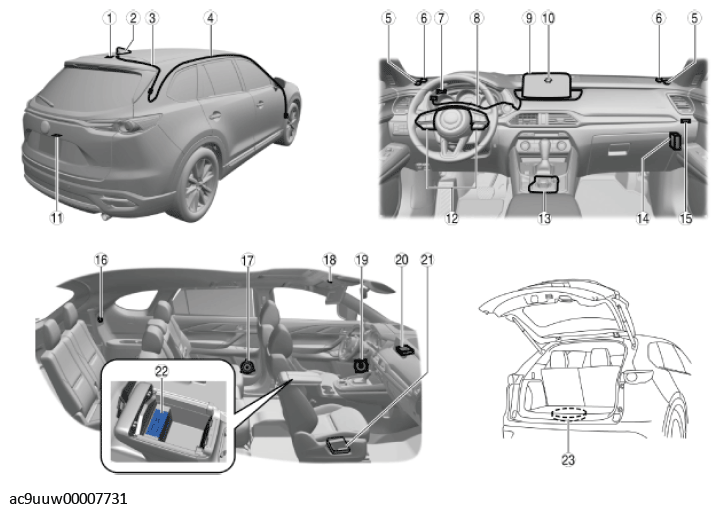

Fig 1: Entertainment Related Components

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Condenser (See CONDENSER REMOVAL/INSTALLATION .)
2	Center roof antenna (See CENTER ROOF ANTENNA REMOVAL/INSTALLATION .) (See CENTER ROOF ANTENNA INSPECTION .)
3	Antenna feeder No. 2 (See ANTENNA FEEDER NO. 2 REMOVAL/INSTALLATION .) (See ANTENNA FEEDER NO. 2 INSPECTION .)
4	Antenna feeder No. 1 (See ANTENNA FEEDER NO. 1 REMOVAL/INSTALLATION .) (See ANTENNA FEEDER NO. 1 INSPECTION .)
5	Tweeter (See TWEETER REMOVAL/INSTALLATION .) (See TWEETER INSPECTION .)
6	Front side speaker(with Bose °) (See FRONT SIDE SPEAKER REMOVAL/INSTALLATION .) (See FRONT SIDE SPEAKER INSPECTION .)
7	GPS antenna (See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION .)
8	GPS antenna feeder (See GPS ANTENNA FEEDER REMOVAL/INSTALLATION .) (See GPS ANTENNA FEEDER INSPECTION .)
9	Center display (See CENTER DISPLAY REMOVAL/INSTALLATION .) (See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE .)
10	Front centerspeaker(with Bose °) (See FRONT CENTER SPEAKER REMOVAL/INSTALLATION .) (See FRONT CENTER SPEAKER INSPECTION .)
11	Rear mount camera (with parking assist system) (See REAR MOUNT CAMERA REMOVAL/INSTALLATION .) (See REAR MOUNT CAMERA INSPECTION .)
12	Steering switch (See STEERING SWITCH REMOVAL/INSTALLATION .) (See STEERING SWITCH INSPECTION .)
13	Commander switch (See COMMANDER SWITCH REMOVAL/INSTALLATION .)
14	Tuner and amp unit(TAU) (See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION .) (See TUNER AND AMP UNIT (TAU) BRACKET REMOVAL/INSTALLATION .)
15	AudioPilot ° microphone (with Bose °) (See AudioPilot® MICROPHONE REMOVAL/INSTALLATION .)
16	Rear speaker (with Bose °) (See REAR SPEAKER REMOVAL/INSTALLATION .) (See REAR SPEAKER INSPECTION .)
17	Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION .) (See REAR DOOR SPEAKER INSPECTION .)
18	Microphone (See MICROPHONE REMOVAL/INSTALLATION .)
19	Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .) (See FRONT DOOR SPEAKER INSPECTION .)
20	Connectivity master unit (CMU) (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION .) (See CONNECTIVITY MASTER UNIT (CMU) DISASSEMBLY/ASSEMBLY .) (See Bluetooth® PAIRING PROCEDURE .) (See MAINTENANCE MONITOR OPERATION PROCEDURE .)
21	Audio amplifier (with Bose °) (See AUDIO AMPLIFIER REMOVAL/INSTALLATION .)
22	Auxiliary jack/USB port/SD card slot hub (See AUXILIARY JACK/USB PORT/SD CARD SLOT HUB REMOVAL/INSTALLATION .) (See AUXILIARY JACK/USB PORT/SD CARD SLOT HUB INSPECTION .)
23	Bass-box (with Bose °) (See BASS-BOX REMOVAL/INSTALLATION .)
