Snap Pin Installation Note

WARNING: This page is about a different car, the 2025 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

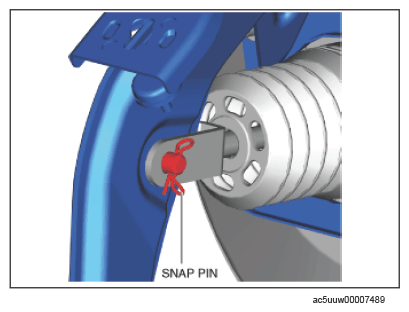

  1. Install the snap pin as shown in the figure below.
G15639841Courtesy of MAZDA MOTORS CORP.
