Guide Plate Installation Note
WARNING: This page is about a different car, the 2025 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Clean the areas where the mounting support and the double-sided adhesive tape on the guide plates come into contact.

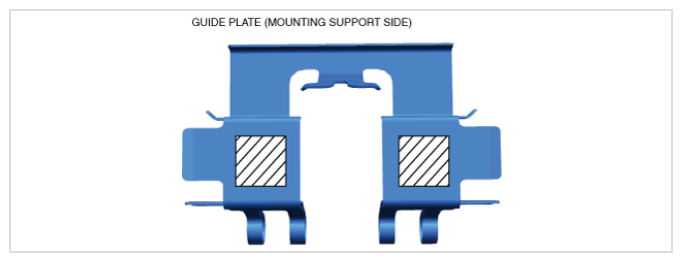

- Apply double-sided adhesive tape to the positions shown in the figure below.
- Peel off the backing of the double-sided adhesive tape.
- Install the guide plates to the mounting support.
- Apply brake grease to the contact surfaces of the guide plate and disc pads.
