MODEL 203

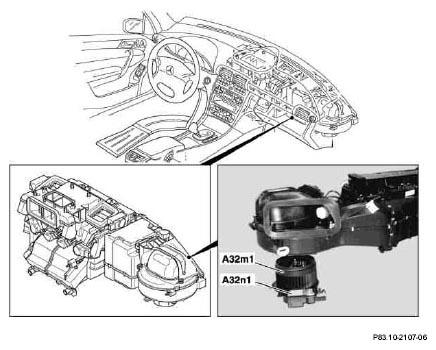

| Blower controller position | The blower controller (A32n1) is below the glove box to the right at the heater / air conditioning box and is attached to the blower (A32m1). | ||
| Blower controller task | The blower controller controls the blower power supply depending on the blower setting. | ||
| Blower controller function | GF83.10-P-2103-01P |
