Blower motor, location/task/function - GF83.10-P-2140P
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 203

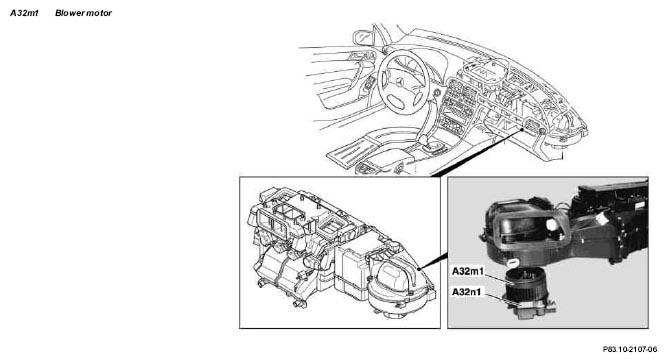

| Blower, location | The blower motor (A32m1) is located under the glove compartment on the right of the heating and evaporator housing. | ||
| Blower, task | In normal operation the blower motor (A32m1) draws in fresh air via the fresh/recirculated air flap and in recirculated air operation it draws in air from the vehicle interior into the heating and evaporator housing. | ||
| In engine residual heat utilization operation the blower motor (A32m1) recirculates the air in the interior. | |||
| Blower function | GF83.10-P-2102-02P | ||
| On vehicles with Code 581a to 31.05.01 and Code 581b as of 01.06.01 | GF83.10-P-2102-02PC |
