Heater housing, location/task/design/function - GF83.20-P-2103P
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 203.0 /2 /7 up to 23.4.04 except CODE (580) Air conditioning (or Tempmatic for USA) except CODE (580) Automatic air conditioning except CODE (581) Automatic air conditioning except CODE (581) Comfort automatic air conditioning

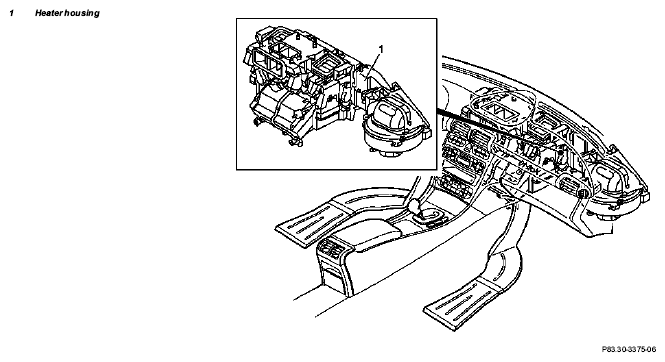

| Heater housing position | The heater housing (1) is located beneath the instrument panel. | ||
| Heater housing task | GF83.20-P-2103-03P | ||
| Heater box design | GF83.20-P-2103-04P | ||
| Heater box function | GF83.20-P-2103-02P |
