(Automatically Controlled All-Wheel Drive (4MATIC), Function - GF28.00-P-0001AVF)
MODEL 205 with TRANSMISSION 722.961/965

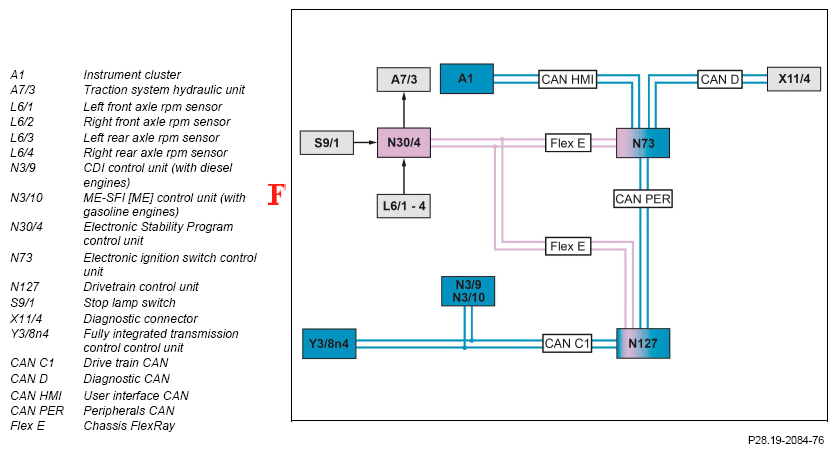

Block diagram
| Sales designation | Model | Motor | Transmission | Transmission control | Notes |
|---|---|---|---|---|---|
| C 250 BlueTEC 4MATIC sedan | 205.009 | 651.921 | 722.965 | Fully integrated transmission control 4 | |
| C 400 4MATIC sedan | 205.066 | 276.823 | 722.961 | Fully integrated transmission control 4 | |
| C 250 BlueTEC 4MATIC wagon | 205.209 | 651.921 | 722.965 | Fully integrated transmission control 4 | |
| C 400 4MATIC wagon | 205.266 | 276.823 | 722.961 | Fully integrated transmission control 4 |
Automatically-controlled all-wheel drive (4MATIC) in general
The automatically controlled all-wheel drive (4MATIC) is a permanent all-wheel drive with interaxle differential. Integration of the transfer case in the A/T reduces the teeth engagement and realizes an optimized lubrication concept. The base blocking torque of 50 Nm serves to improve traction at low engine torque and reduce drive-line vibration. The fixed drive torque distribution is 45 % at the front axle and 55 % at the rear axle. The drive torque is distributed via a single-speed transfer case without off-road ratio to the drive axles (drive train).
Further subfunctions are described in separate documents:
- 4MATIC transfer case, function
- 4MATIC side output, function
- 4MATIC front axle transmission, function
- Oil supply for 4MATIC transfer case function
- 4MATIC electronic traction system, function
| 4MATIC transfer case, function | GF28.10-P-1000AVF | ||
| 4MATIC side output, function | GF28.10-P-1010AVF | ||
| Oil supply for 4MATIC transfer case function | GF28.55-P-3010AVF | ||
| 4MATIC front axle transmission, function | GF33.10-P-3000AVF | ||
| 4MATIC electronic traction system, function | GF42.35-P-1000AVF | ||
| Overview of system components, automatically controlled all-wheel drive (4MATIC) | GF28.00-P-9998AVF |
