31 00... Notes on repairing threads

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Install Helicoil thread inserts so that they are flush with the original thread.

NOTE: Damaged threads in engine support may be repaired with Helicoil thread inserts. Comply with the procedure described in the example.

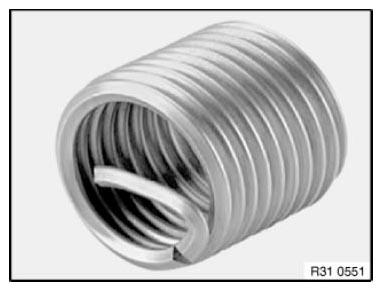

Fig 1: Identifying Damaged Threads

Courtesy of BMW OF NORTH AMERICA, INC.

Procedure

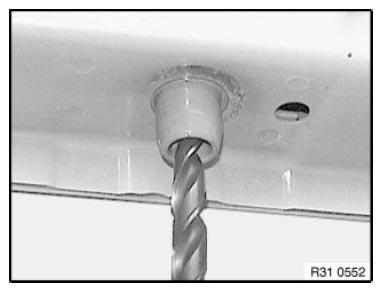

Create a clean core hole; if necessary, drill out screw remnants

Fig 2: Drilling Clean Hole Core For Helicoil Thread Insert
Courtesy of BMW OF NORTH AMERICA, INC.

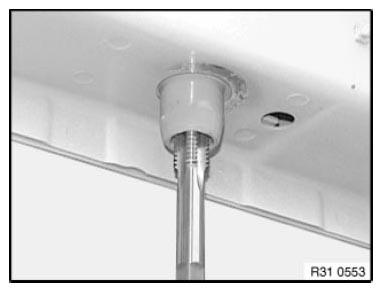

Create locating thread for Helicoil thread insert

Fig 3: Creating Locating Thread For Helicoil Thread Insert
Courtesy of BMW OF NORTH AMERICA, INC.

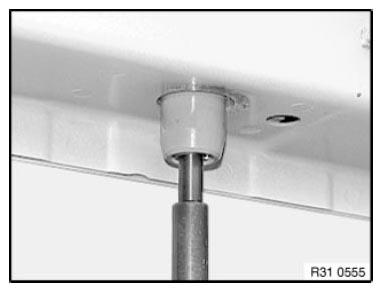

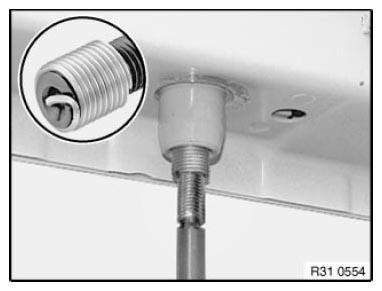

Pick out Helicoil thread insert in accordance with the TABLE and screw into the locating thread until flush with the original thread

Fig 4: Inserting Helicoil Thread Into Locating Thread
Courtesy of BMW OF NORTH AMERICA, INC.
Break drive pin and remove

Fig 5: Removing Drive Pin
Courtesy of BMW OF NORTH AMERICA, INC.
