41 00... Overview Of Spring Support Repair Elements
WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
| Component | Repair element | Part number | Matching | ||
|---|---|---|---|---|---|

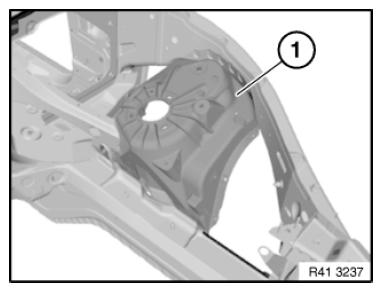

| (1) Spring support | Helicoil thread insert M10(1) | 07 14 7 046 145 | V-strut on spring support | ||
| Helicoil thread insert M6(1) | 07 14 6 046 334 | ||||
| Blind rivet nut M10 | 07 14 6 975 569 | Threaded bolt with ball head for gas strut | |||
Service/Technology - Workshop Equipment (Start BMW) - Shop Workshop Equipment Or at: www.bmw.group-wep.com Carry out thread repair with HELICOIL THREAD INSERT . Read and comply with tool manufacturer's instructions. |
|||||
