DTC 15: Auto-cruise Control Switch System
›
Notes
DTC 15: Auto-cruise Control Switch System: Notes
WARNING:
This page is about a different variant/trim than selected.

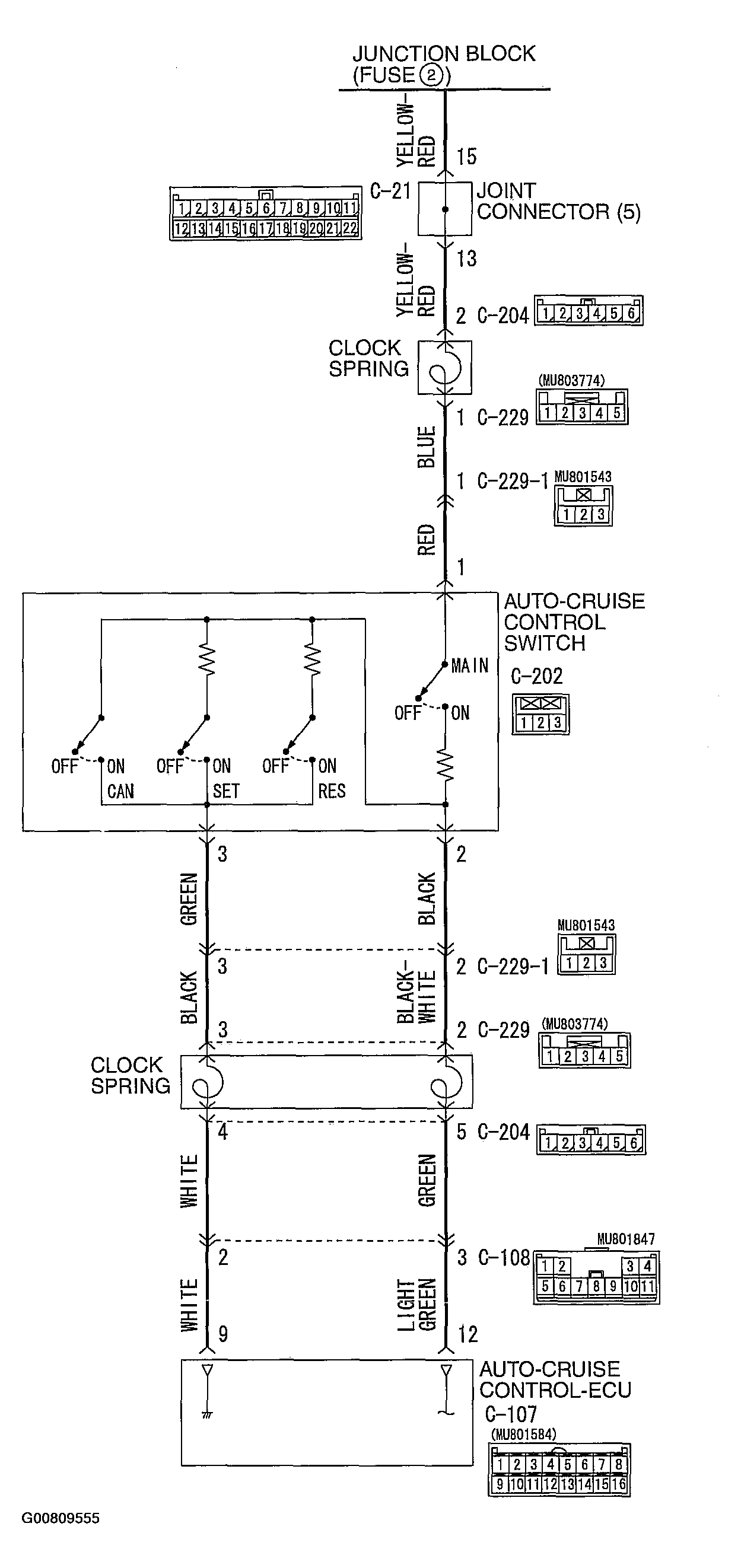

Fig 1: Auto-Cruise Control Switch System Circuit Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

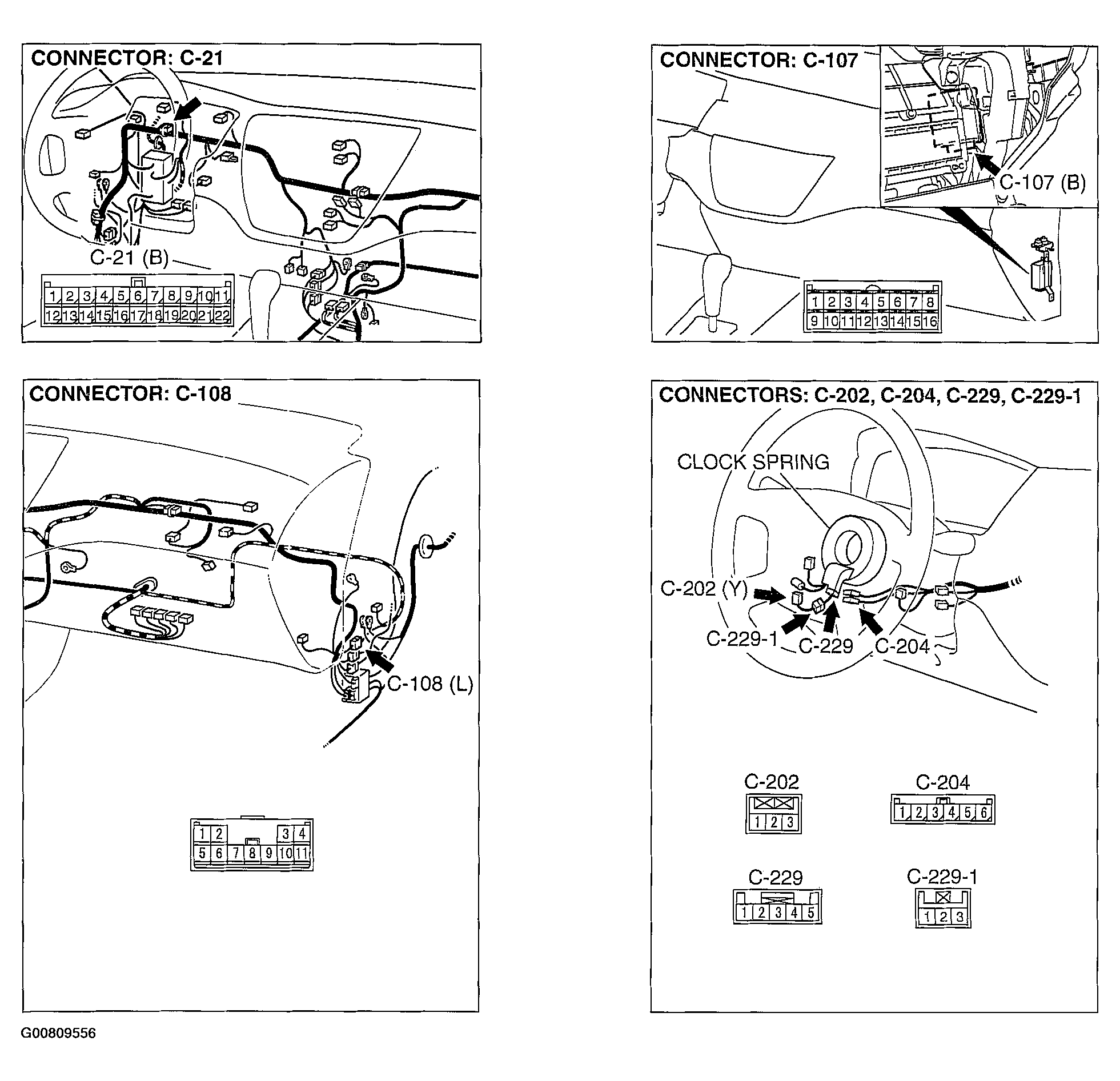

Fig 2: Identifying Connectors: C-21, C-107, C-108, C-202, C-204, C-229, C-229-1
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
