Stoplight Switch

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the connector.
    Fig 1: Identifying Stoplight Switch Connector
    G00809701Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

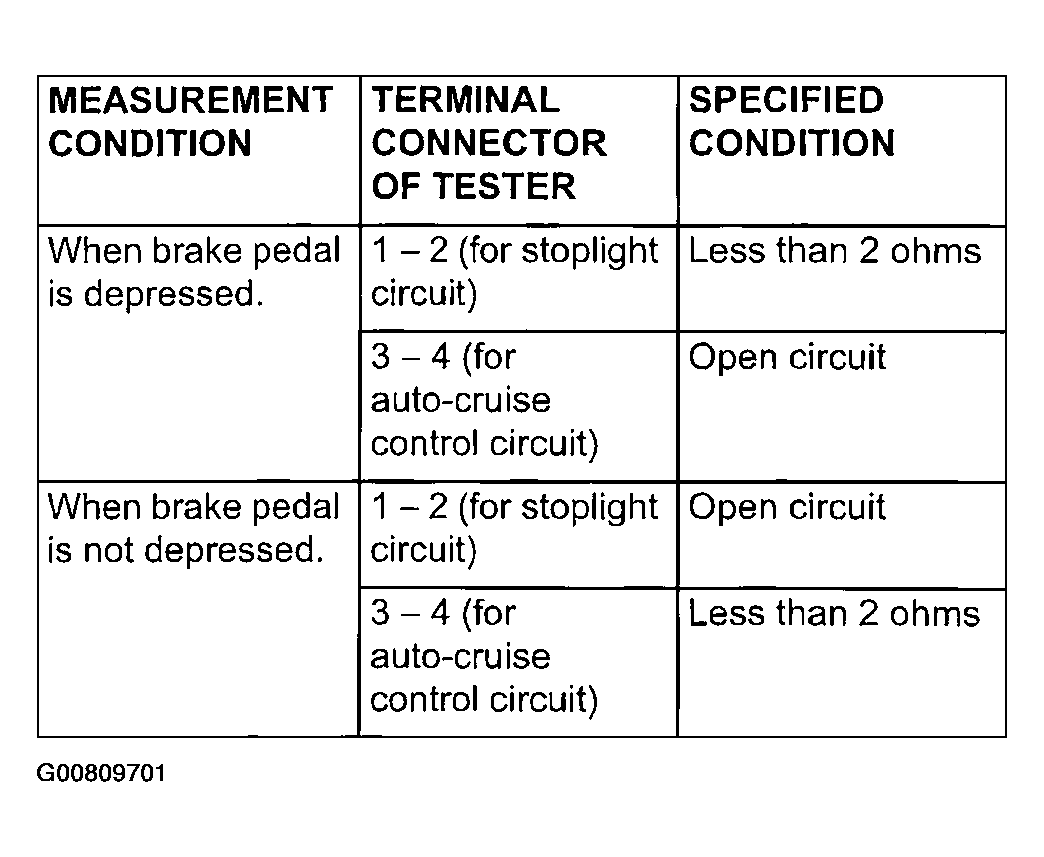

  2. Check for continuity between the terminals of the switch.
    Fig 2: Checking Terminals Of Switch
    G00809702Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
