Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

CAUTION:

Do not strike the ABS rotors installed to the EBJ outer race of drive shaft against other parts when removing or installing the drive shaft. The ABS rotors will be damaged.
Be careful not to strike the pole piece at the tip of the rear ABS sensor with tools during servicing work.
During maintenance, take care not to contact the parts or tools to the caliper because the paint of caliper will be scratched. And if there is brake fluid on the caliper, wipe it off quickly.

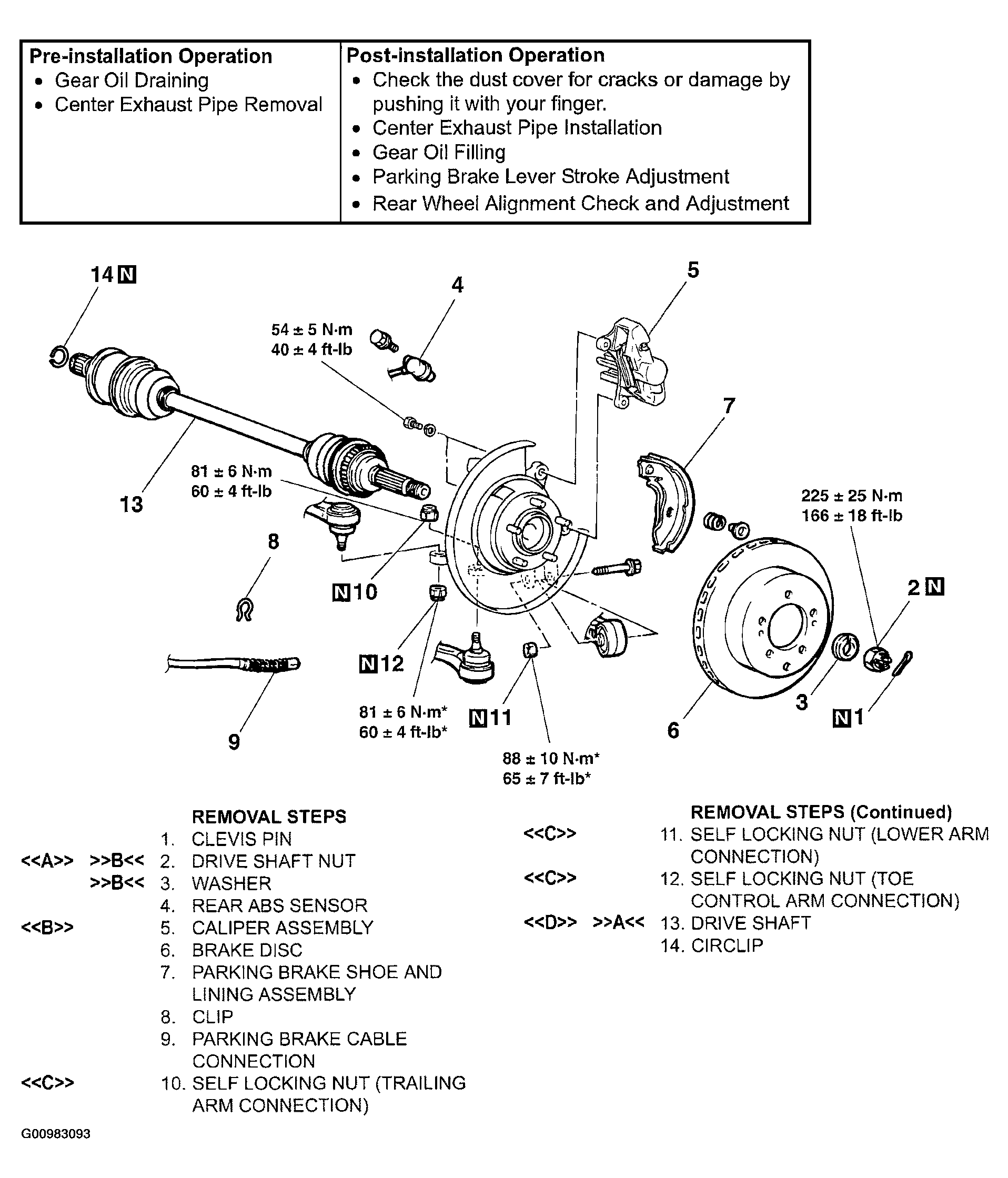

Fig 1: View Of Drive Shaft Assembly With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
