Special Tools: Notes

WARNING: This page is about a different variant/trim than selected.

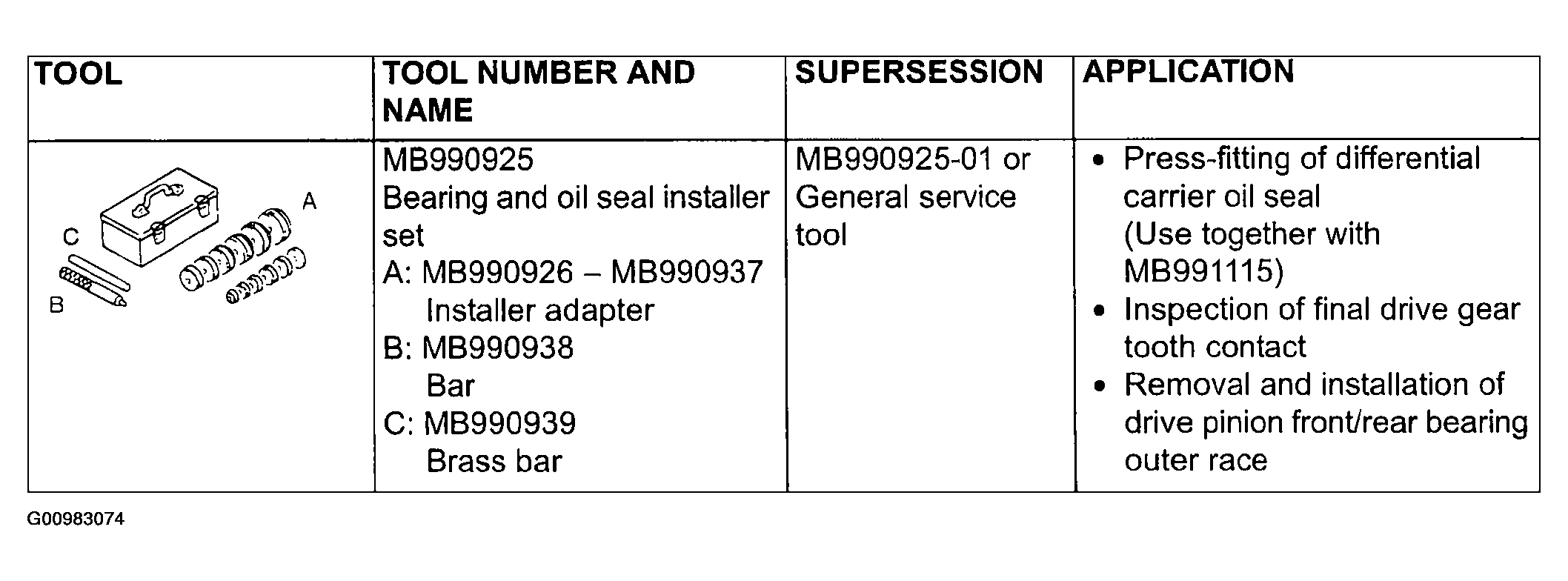

Fig 1: Identifying Special Tools Charts (1 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Identifying Special Tools Charts (2 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Identifying Special Tools Charts (3 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 4: Identifying Special Tools Charts (4 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
