Abs Warning Light Relay Check

WARNING: This page is about a different variant/trim than selected.

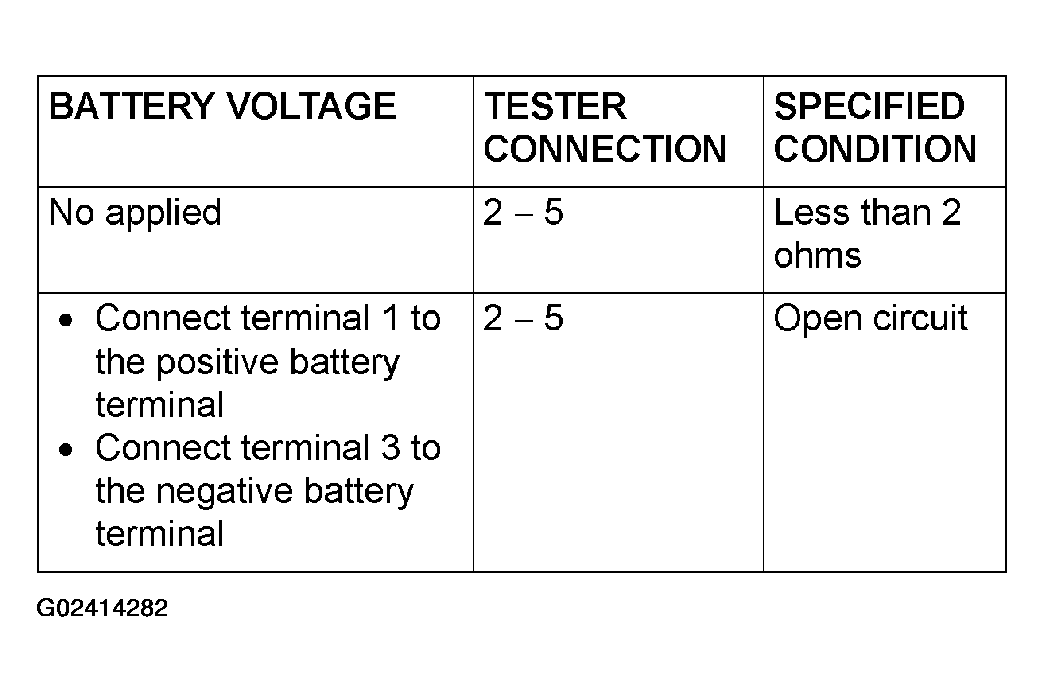

Fig 1: Tester Connection And Specified Condition Chart
G02414282Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

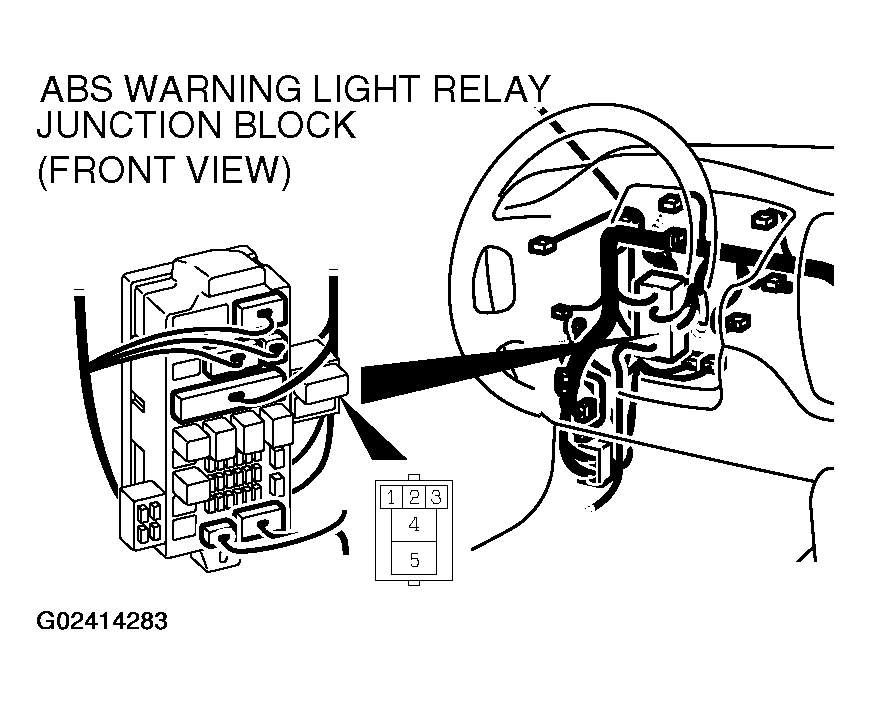

Fig 2: Identifying ABS Warning Light Relay
G02414283Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
