Removal And Installation: Notes

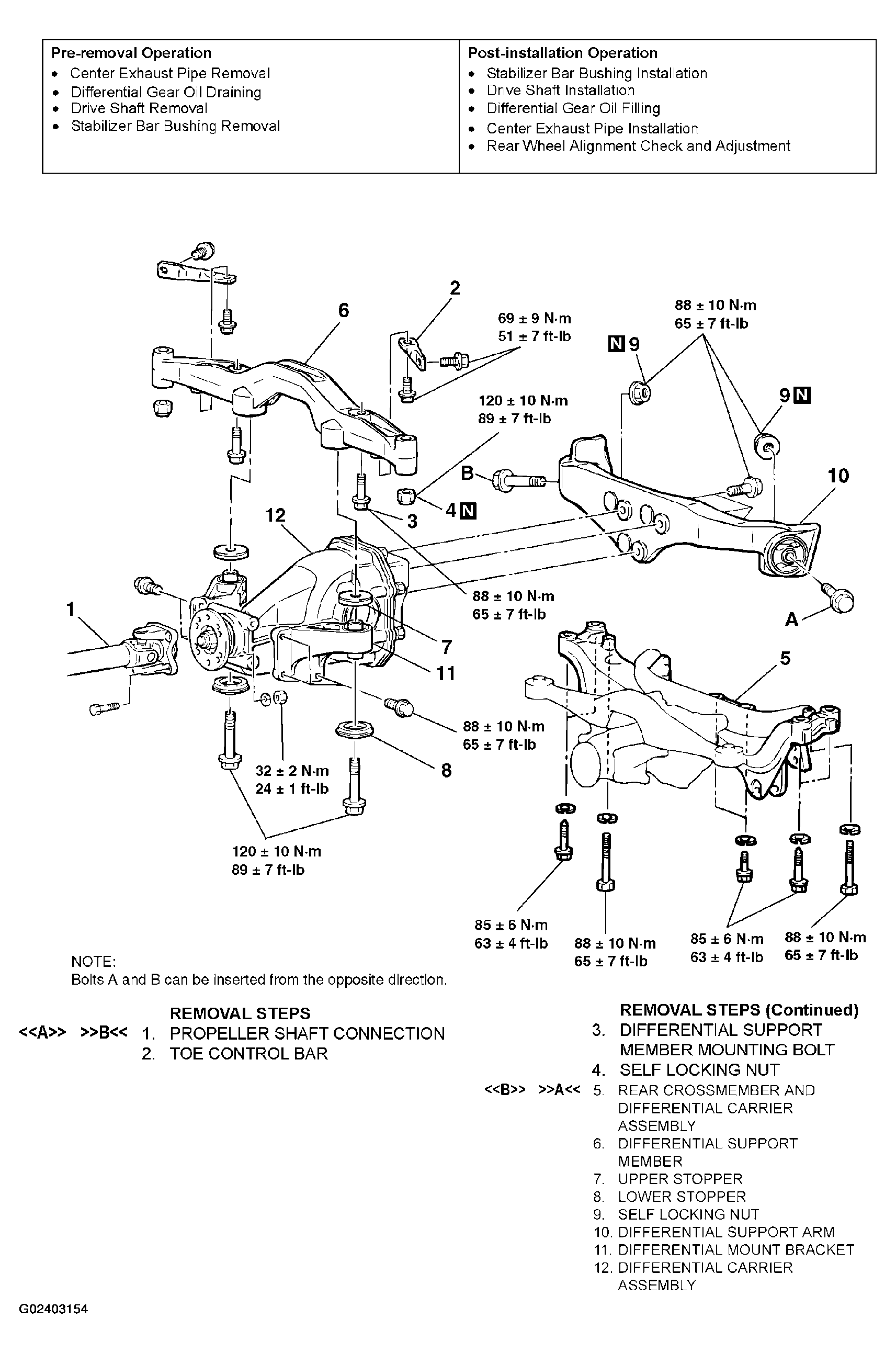

Fig 1: Removing Differential Carrier Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
