Hub Bolt Replacement

Required Special Tools:

• MB990767: Front Hub and Flange Yoke Holder
• MB991618: Hub Bolt Remover

1. Remove the brake caliper and brake disc.
2. Use special tools MB990767 and MB991618 to remove the hub bolts.
   NOTE: To retain a space for removing the hub bolts, remove near the retainer spring mounting position.

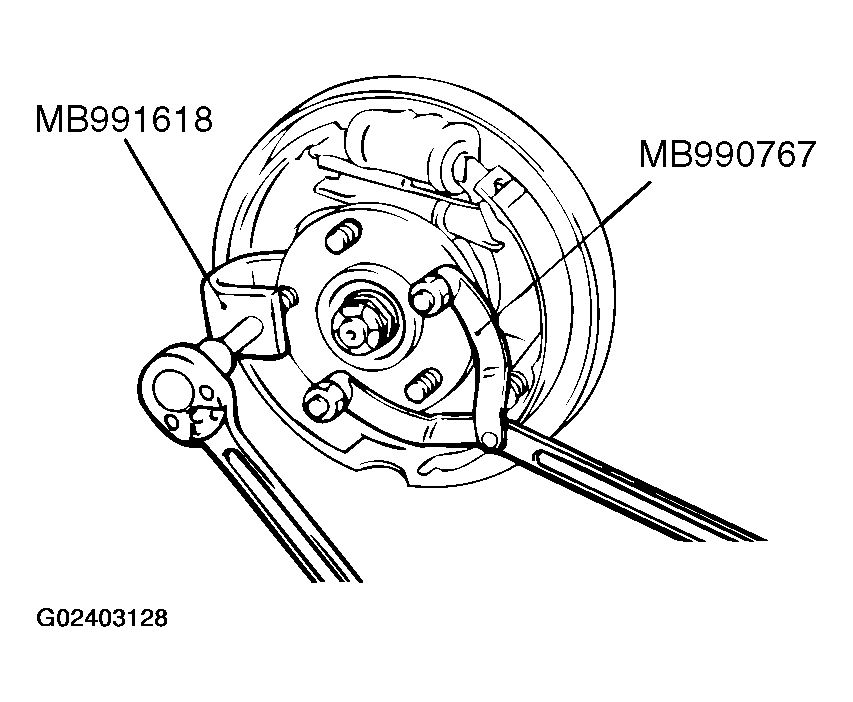

   Fig 1: Removing Hub Bolts

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Install the plain washer to the new hub bolt, and install the bolt with a nut.

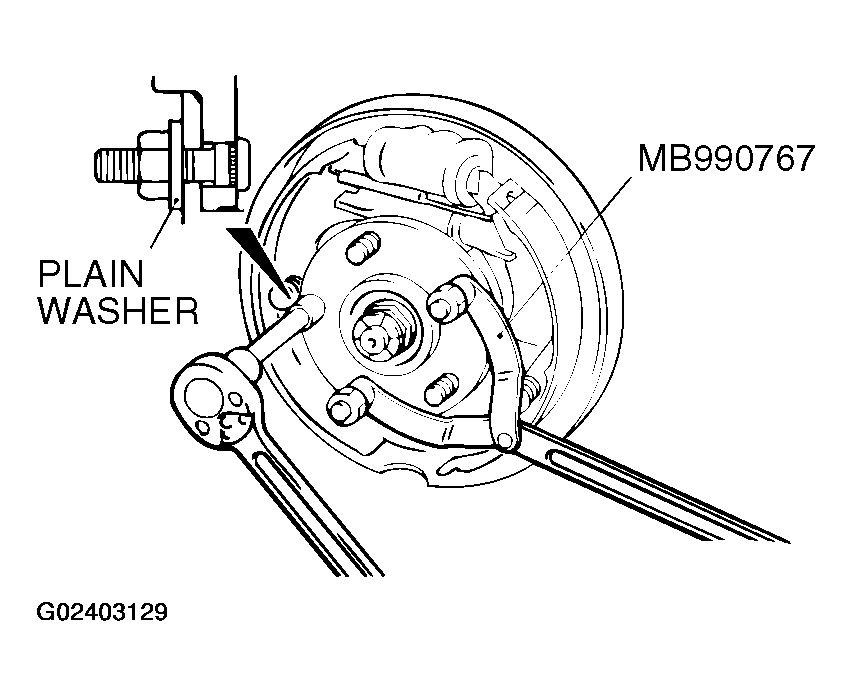

   Fig 2: Installing Plain Washer To Hub Bolt

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
