Disassembly And Assembly: Notes

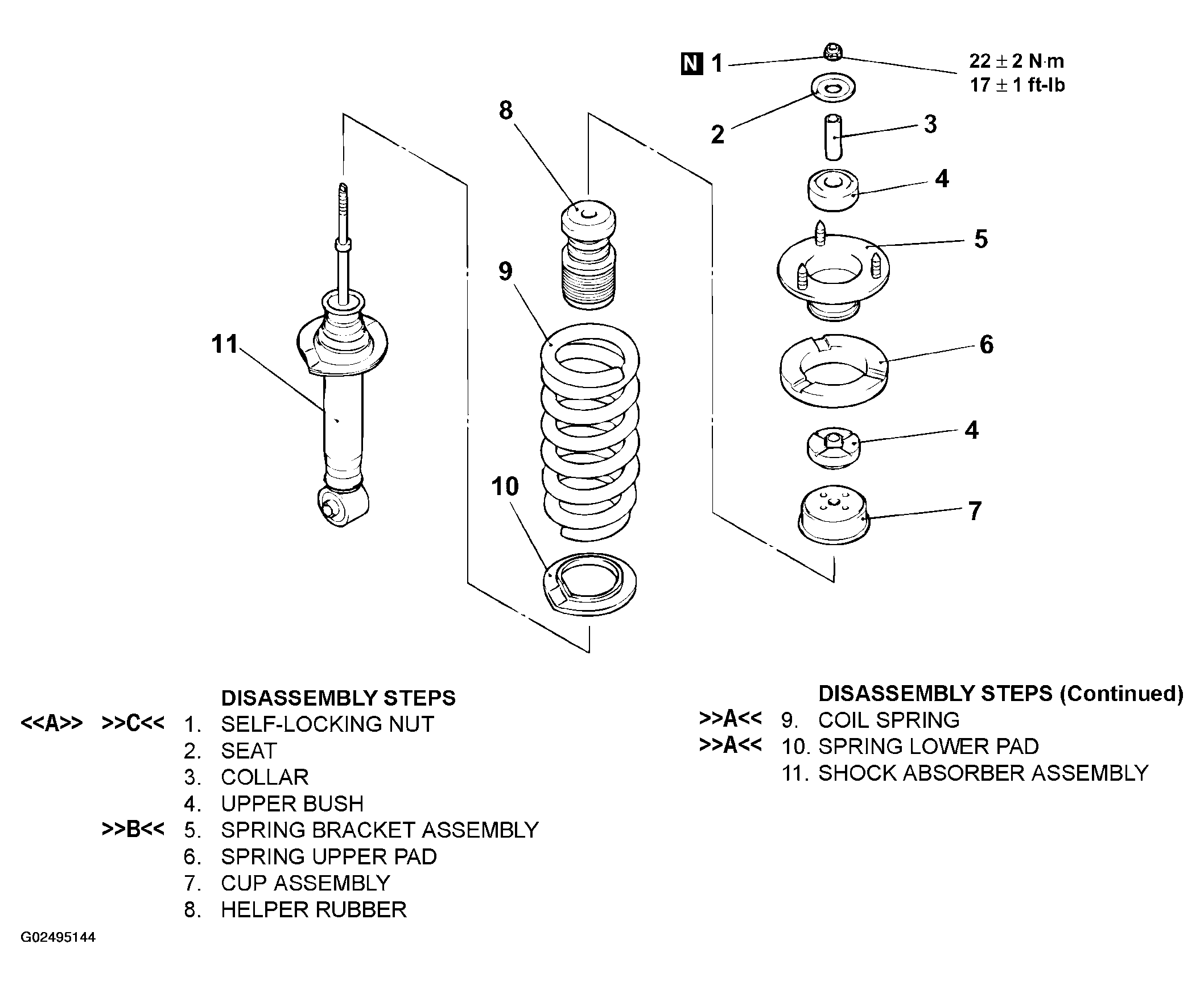

Fig 1: Exploded View Of Shock Absorber Assembly
G02495144Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
