Special Tools

SPECIAL TOOLS

TOOL TOOL NUMBER AND NAME SUPERSESSION APPLICATION
G04238878G04238879G04238880G04238881G04238882G04238883G04238884
G04238878G04238879G04238880G04238881G04238882G04238883G04238884
G04238878G04238879G04238880G04238881G04238882G04238883G04238884
G04238878G04238879G04238880G04238881G04238882G04238883G04238884
G04238878G04238879G04238880G04238881G04238882G04238883G04238884
G04238878G04238879G04238880G04238881G04238882G04238883G04238884
G04238878G04238879G04238880G04238881G04238882G04238883G04238884
 MB991958
  1. MB991824
  2. MB991827
  3. MB991910
  4. MB991911
  5. MB991914
  6. MB991825
  7. MB991826

MUT-III Sub Assembly
  1. Vehicle communication interface (V.C.I.)
  2. MUT-III USB cable
  3. MUT-III main harness A (Vehicles with CAN communication system)
  4. MUT-III main harness B (Vehicles without CAN communication system)
  5. MUT-III main harness C (for Daimler Chrysler models only)
  6. MUT-III measurement adapter
  7. MUT-III trigger harness
 MB991824-KIT
NOTE: G: MB991826 MUT-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.
  • Reading diagnostic trouble code
  • Estimated vehicle speed sent
CAUTION: For vehicles with CAN communication, use MUT-III main harness A to send simulated vehicle speed. If you connect MUT-III main harness B instead, the CAN communication does not function correctly.

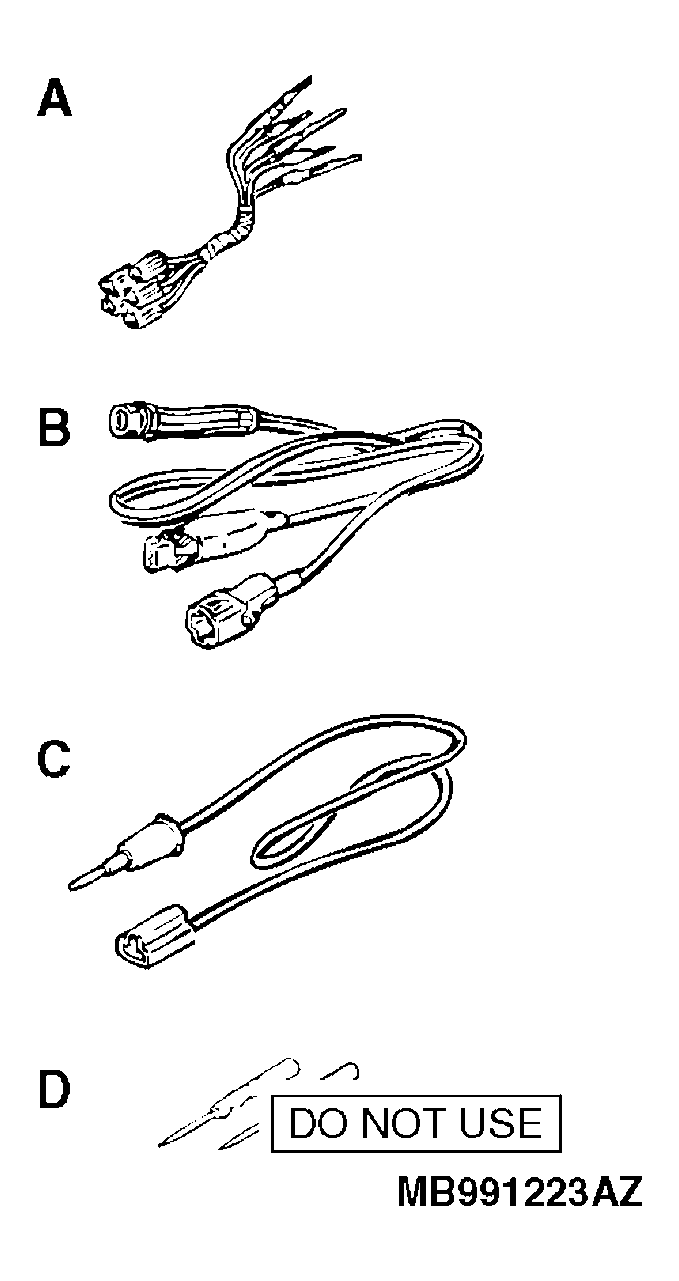

G04238885
 MB991223
  1. MB991219
  2. MB991220
  3. MB991221
  4. MB991222

Harness set
  1. Test harness
  2. LED harness
  3. LED harness adapter
  4. Probe
 General service tool (jumper) Making voltage and resistance measurements during troubleshooting
  1. Connect pin contact pressure inspection
  2. Power circuit inspection
  3. Power circuit inspection
  4. Commercial tester connection
G04238886
 MB992006 Extra fine probe General service tool Making voltage and resistance measurement during troubleshooting
