Fuel Level Sensor Check: Notes

  1. Remove the rear seat cushion assembly. (Refer to REAR SEAT ASSEMBLY .)
  2. Remove hole cover and remove the fuel pump module and fuel level sensor (sub) (Refer to FUEL TANK .).

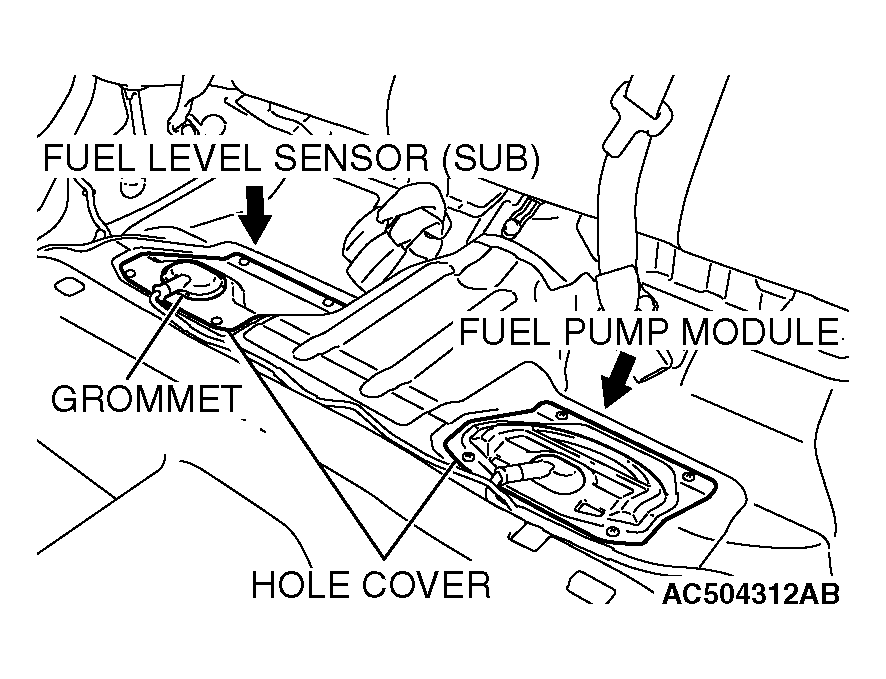

    Fig 1: Removing Hole Cover And Fuel Pump Module And Fuel Level Sensor
    G04256767Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
