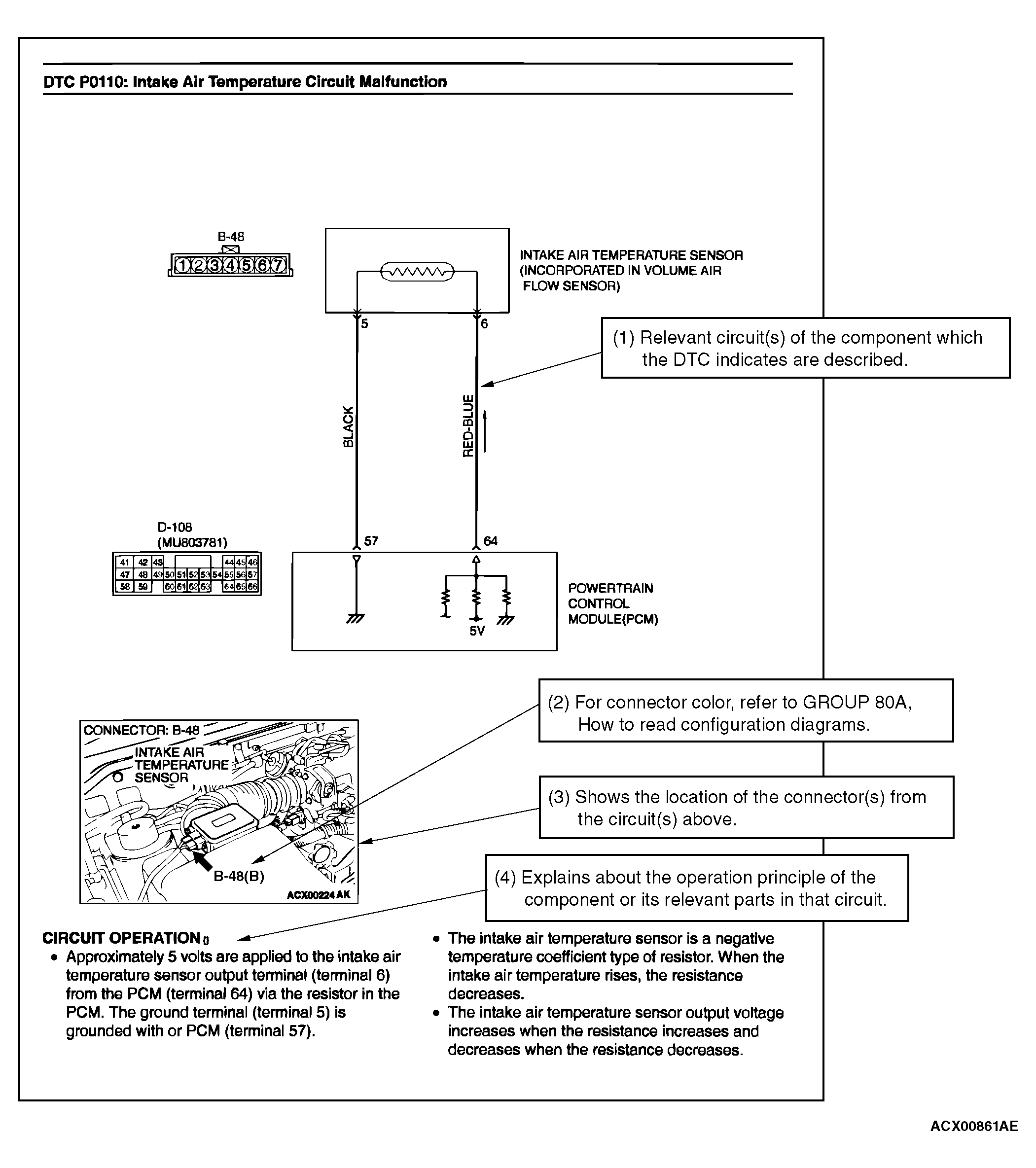

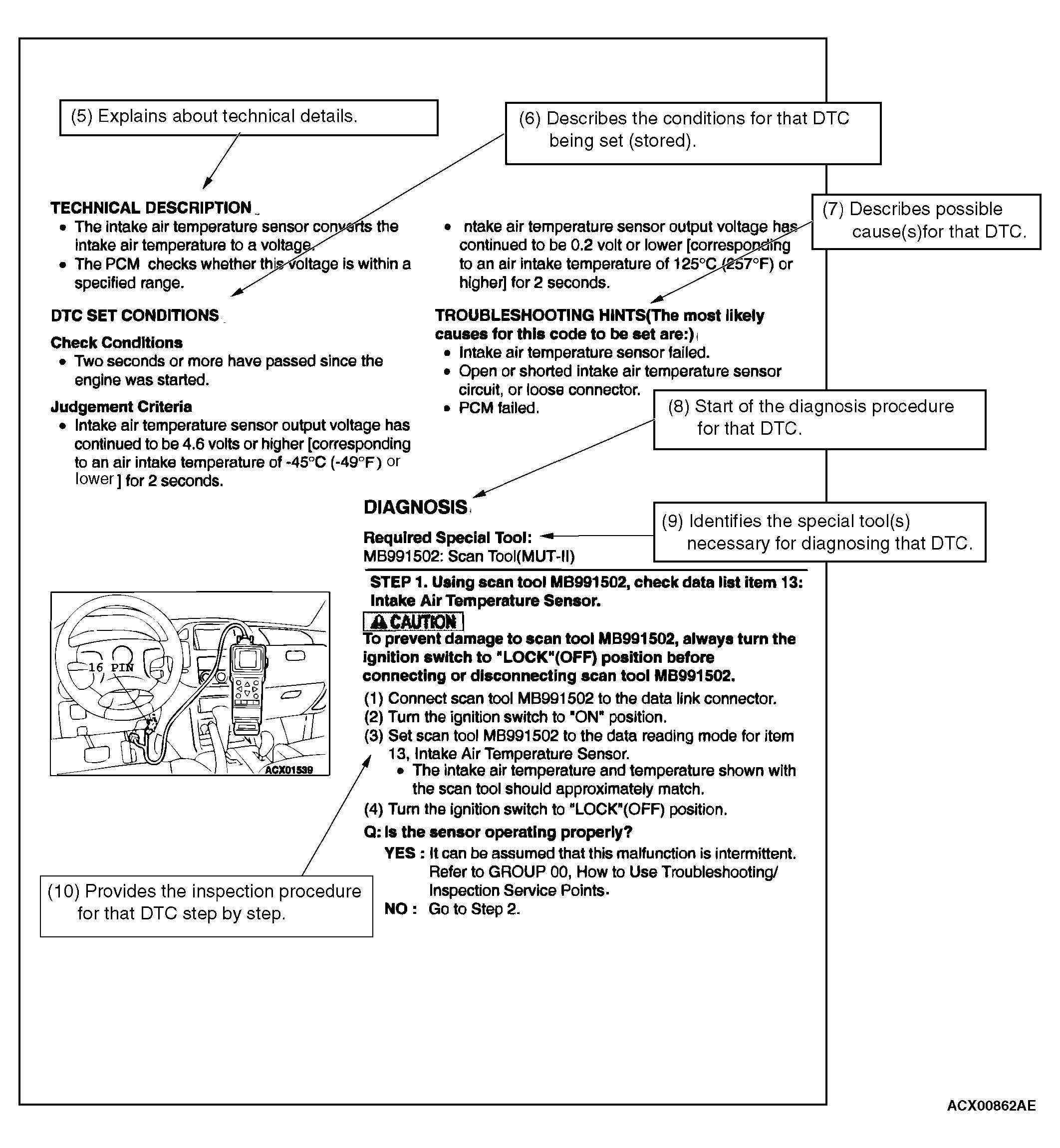

How To Use The Inspection Procedures
WARNING: This page is about a different variant/trim than selected.
The causes of many of the problems occurring in electric circuitry are generally the connectors, components, the ECU, and the harnesses between connectors, in that order. These inspection procedures follow this order. They first try to discover a problem with a connector or a defective component.
