DTC 22: Stoplight Switch System: Notes

WARNING: This page is about a different variant/trim than selected.

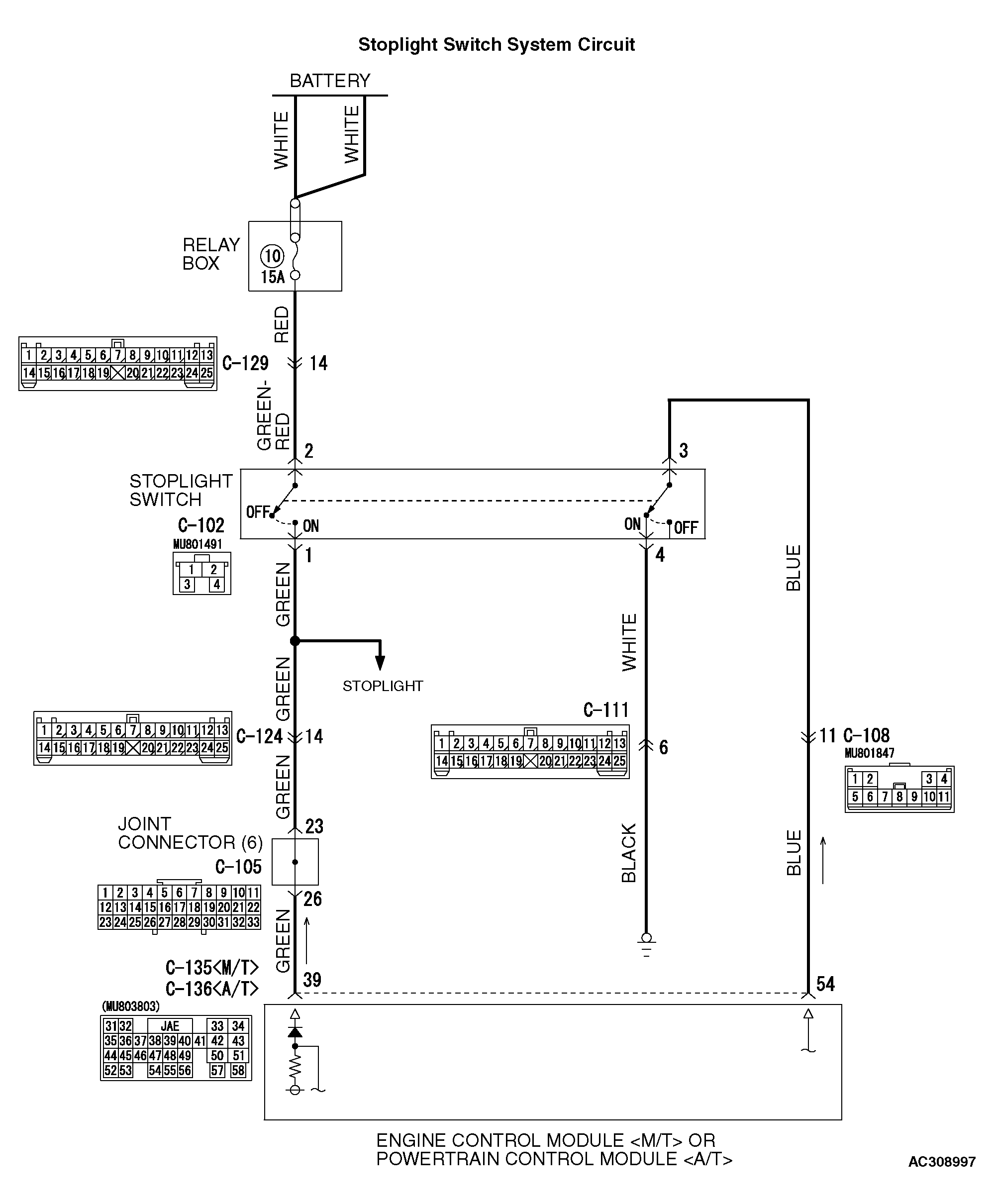

Fig 1: Stoplight Switch System Circuit - Diagram (1 Of 2)
G04273632Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
