Communication Method

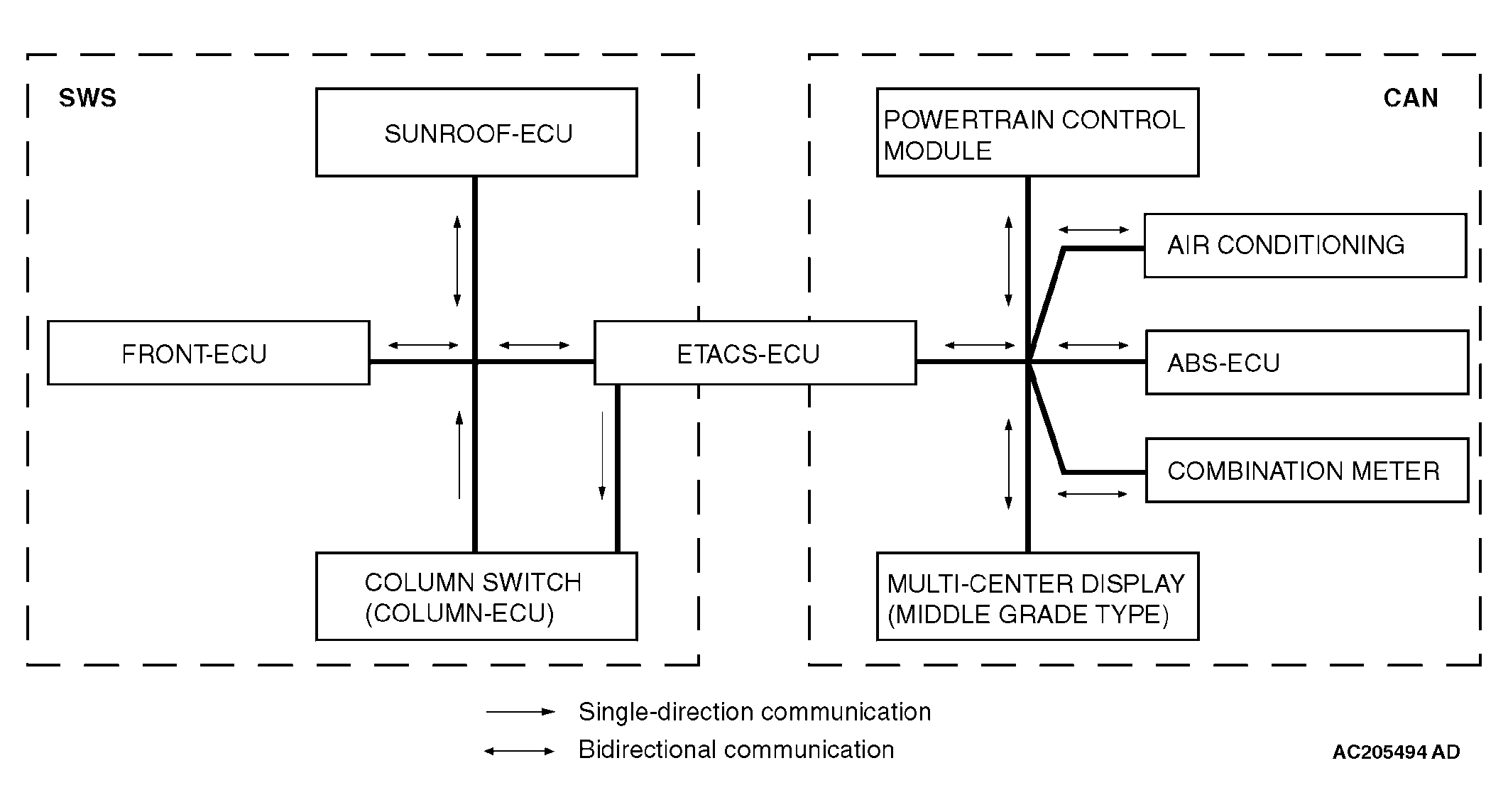

As shown in the illustration, SWS communications connect the ETACS*1 -ECU, the column switch (in the column-ECU), the front-ECU, and the sunroof-ECU. CAN*2 *3 communications connect the ETACS-ECU, the powertrain control module, the A/C-ECU, the combination meter, the ABS-ECU, and the middle-grade multi-center display. These two communications groups are connected to form a dedicated network for sending multiplex data.
NOTE:
*1
ETACS: Electronic Time and Alarm Control System
NOTE:
*2
CAN: Controller Area Network
NOTE:
*3
: For details on CAN, see CONTROLLER AREA NETWORK (CAN)
.
