Endeavor LS, AWD
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
Simplified Wiring System
›
Symptom Procedures
›
Keyless Entry System
›
General Circuit Diagram For The Keyless Entry System
General Circuit Diagram For The Keyless Entry System

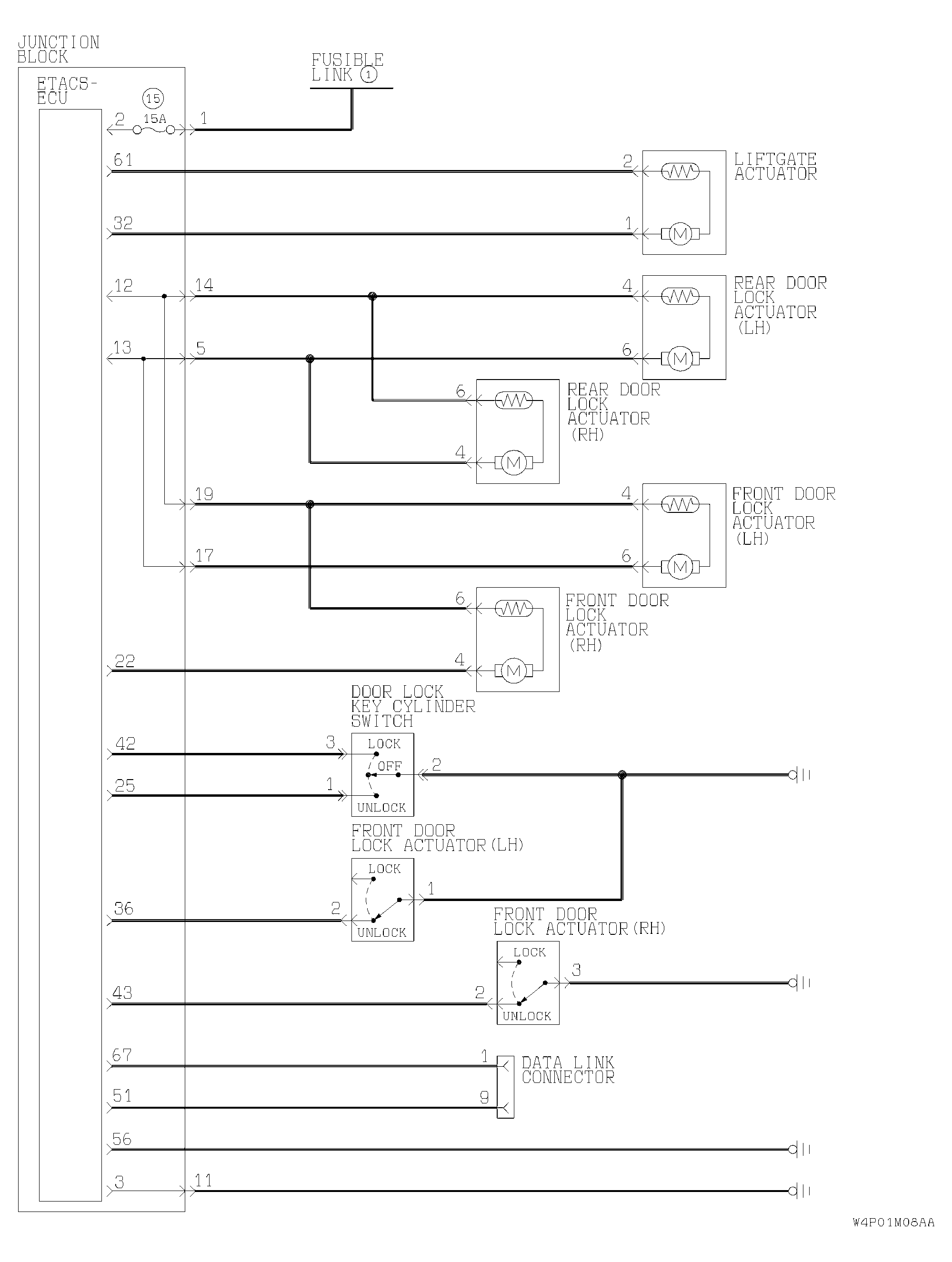

Fig 1: Keyless Entry System Circuit Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
