General Circuit Diagram For The Power Windows
General Circuit Diagram For The Power Windows

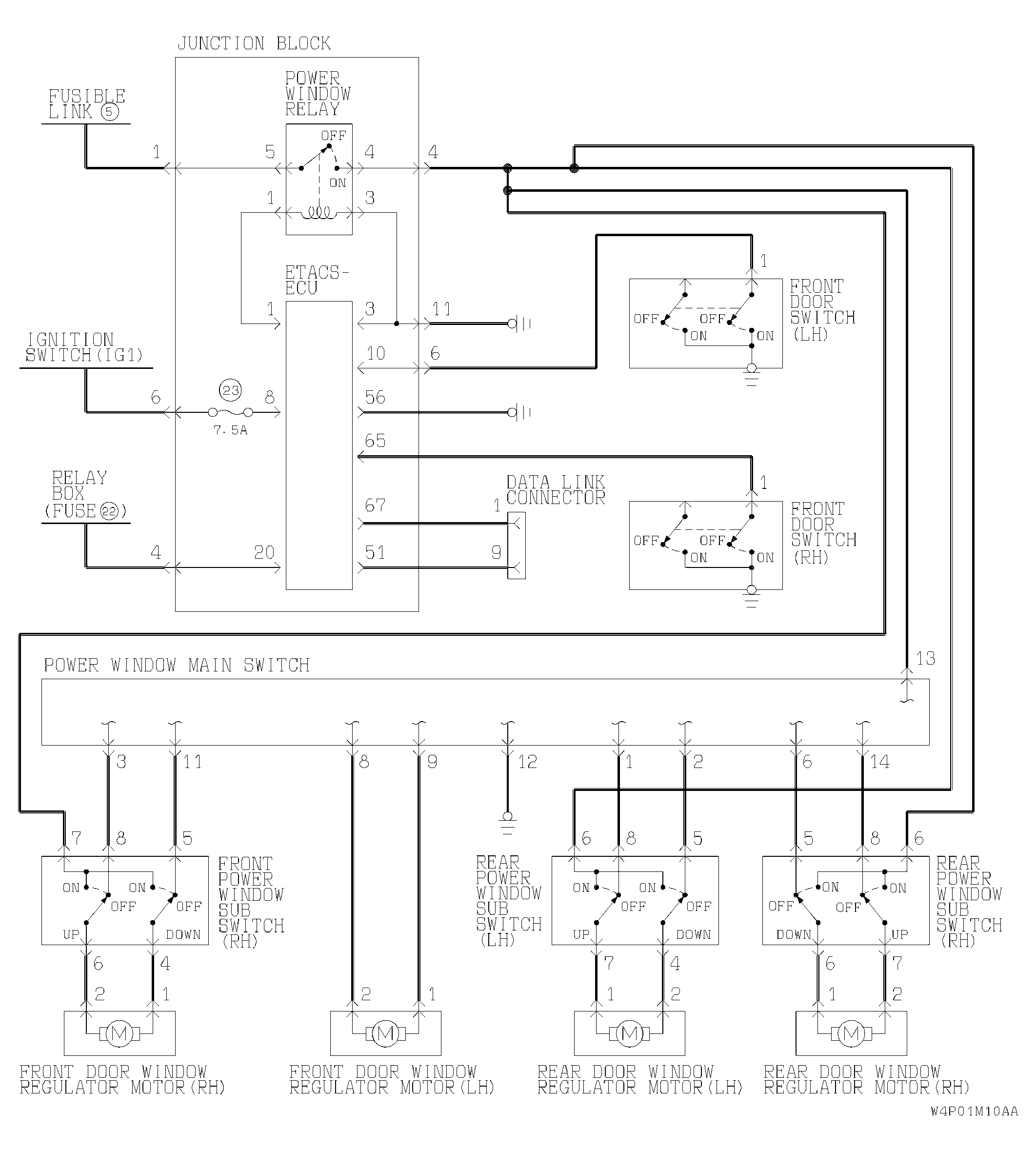

Fig 1: General Circuit Diagram For Power Windows
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
